ALIA Trimless White recessed lamp 8W 50º 3000K CASAMBI

Related products

Ref: 080193051C

Favourite

ALIA is a collection of technical luminaires ideal for installations in ceilings with a low recess height. Thanks to its ability to be directed, it can be used as a downlight or as a projector.

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: II

IP: 20

voltage: 220V-240V

Power supply current: 200 mA

Hertz: 50/60Hz

Flush box dimensions : 275x275x68

Max. Power: 8W

Cutting size: ø 75mm

Control system: TRIAC

Minimum recessed height: 92mm

Material

Body/Structure: Aluminium + Aluminium

Finish

Body/Structure: Black+Black

Lighting characteristics

Light source included: Yes

Light source: COB LED

Dimmable: Yes

Maximum ceiling thickness: 25mm

Temperature: 3000K

Lumens: 475lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L70 B10

Degrees of light aperture: 50º

Energy classification: F

Type of lighting: ACENTO

Incandescent filament: 650

Driver

Driver included: Yes

Power factor: 0.8

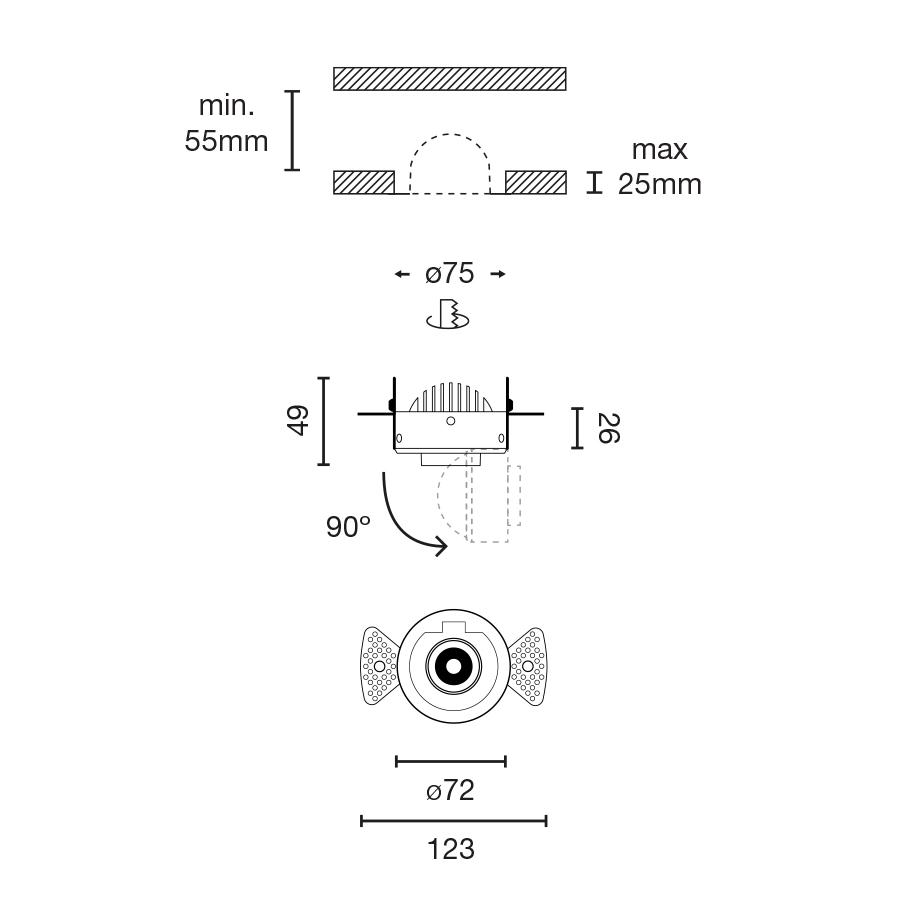

Dimensions and photometrics

See 3D projection

Load interactive experience

See now

Download files

Instructions

Technical data sheet

Instructions

Images

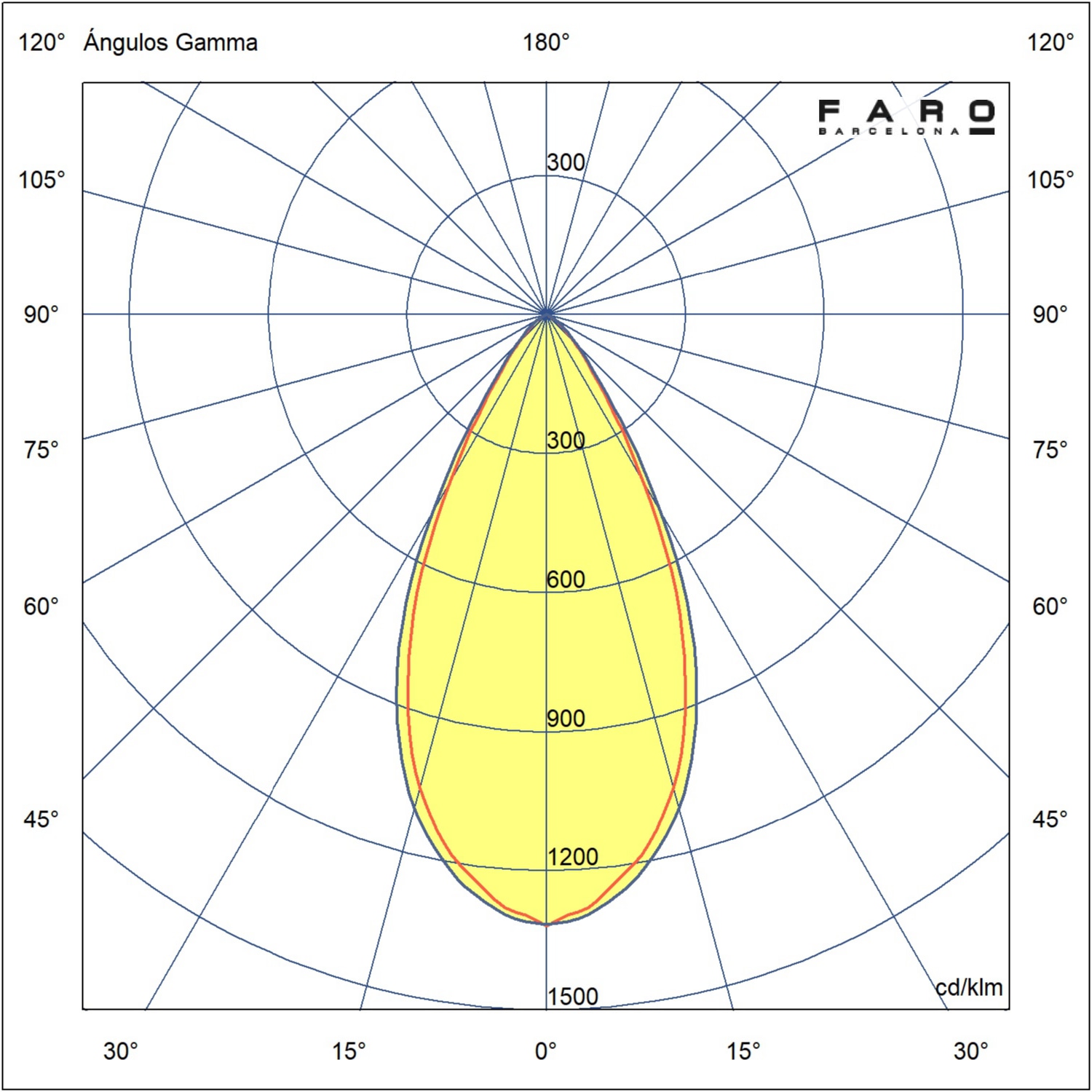

Photometric

Technical Files

2D / 3D
