Home ARCHITECTURAL LINEAR SYSTEMS Ceiling VIA EVO surface 1130 51+21W 4000K white
VIA EVO surface 1130 51+21W 4000K white
Ref: 042006001-110
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a asymmetric up&down luminaire in colour white with a length of 1130 mm, with a colour temperature of 3000K, CRI80 and a power of 51+21W.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 51+21W
Control system: On/off
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 4000K
Lumens: 4654+2743lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Accesories

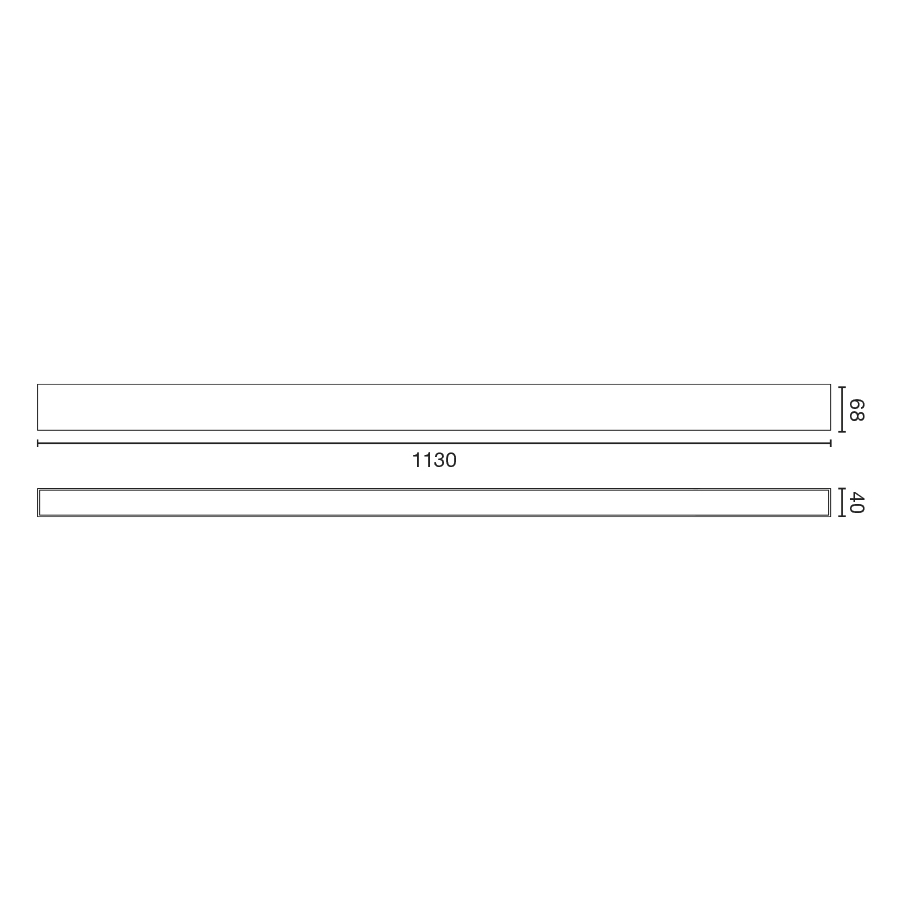

Measures
