VIA EVO wall up&down 1130 51+21W 3000K white DALI
Ref: 042005151D-110
Favourite
System designed for general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or the building of different formats using light fixtures or corner accessories. VIA EVO is a surface lamp up&down luminaire in colour white with a length of 1130 mm, with a colour temperature of 3000K, a power of 51+21W and has the control system.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 51+21W
Control system: DALI
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 3000K
Lumens: 4519+2664lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: DALI
Accesories

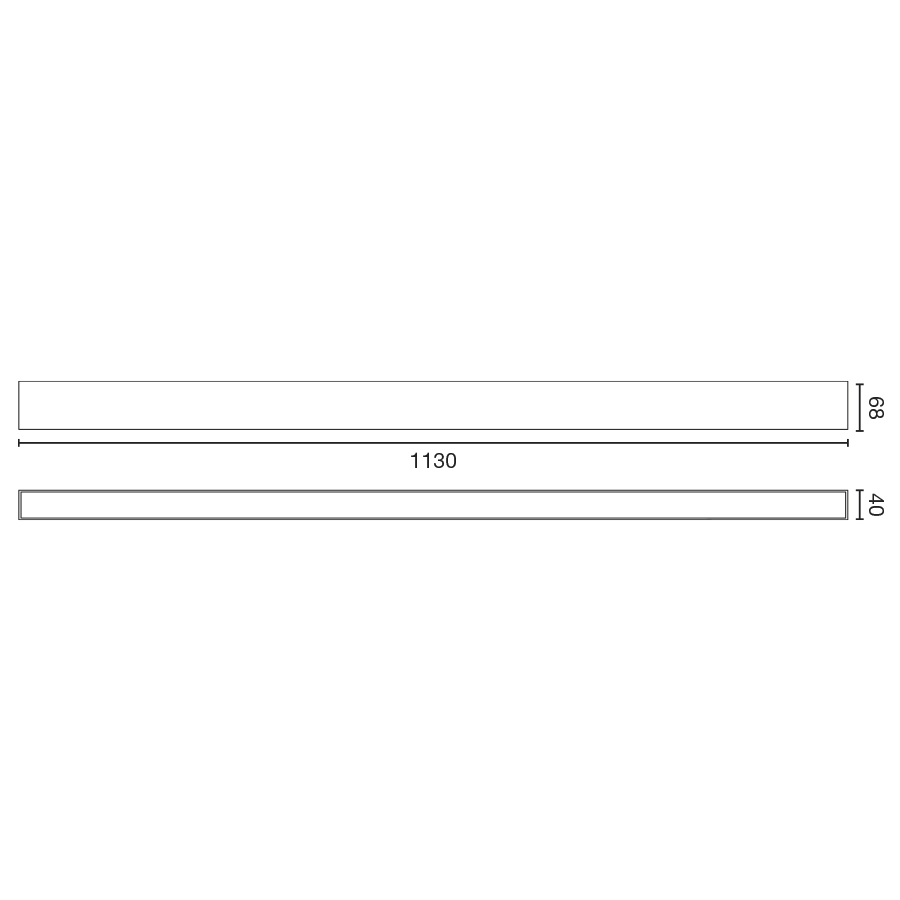

Measures
