Home ARCHITECTURAL TRACK LUMINAIRE AND TRACKS Three-phase track VIA EVO TRACK 1130 surface white 16W UGR
VIA EVO TRACK 1130 surface white 16W UGR<16 4000K 50°
Ref: 0410T12115-110
Favourite

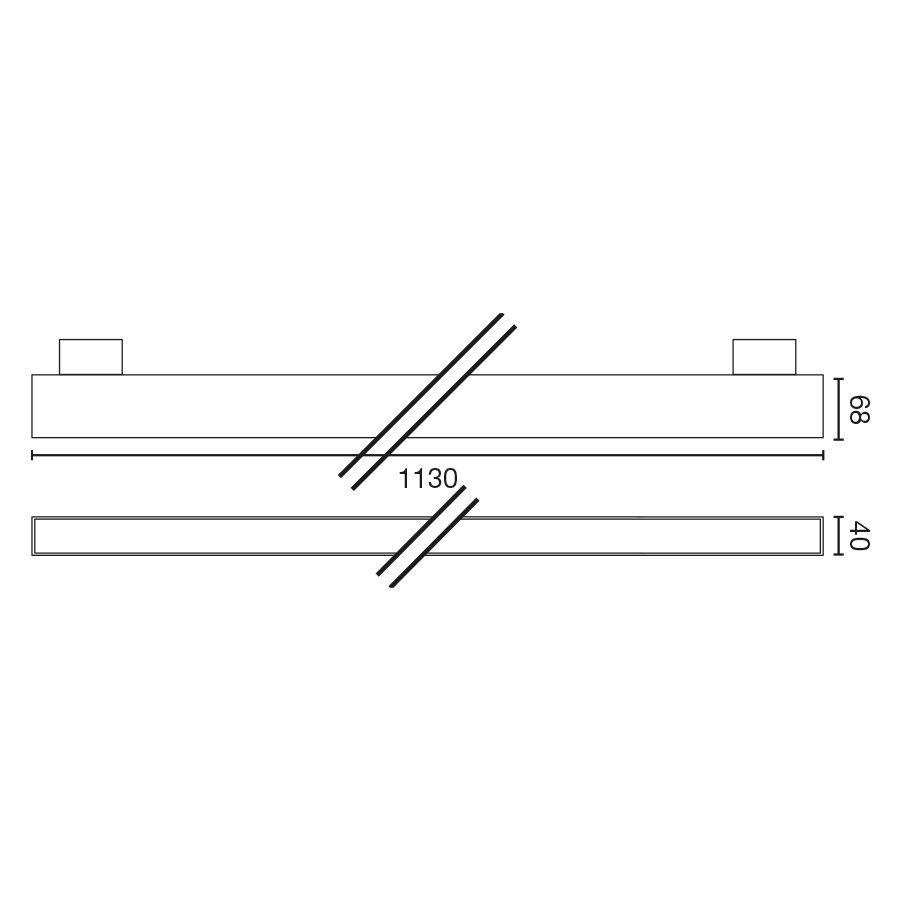

System designed for the general lighting of spaces. VIA EVO TRACK enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO TRACK is a surface luminaire in colour blanc with a length of 1130 mm, with a colour temperature of 4000Kand an angle of 50°. Its UGR<16 makes it an ideal choice for office applications.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Three-phase track
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 25W
Control system: On/off
Material
Body/Structure: Aluminium + PC
Finish
Body/Structure: White+Gloss Black
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 4000K
Lumens: 3306lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 50º
Eficiencia: 134
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Accesories
Measures
Download files
Download files
Instructions
Technical data sheet
Instructions
