VIA EVO TRACK 1130 surface white 16W UGR<19 3000K Low Output asim
Ref: 0410T11110-110
Favourite

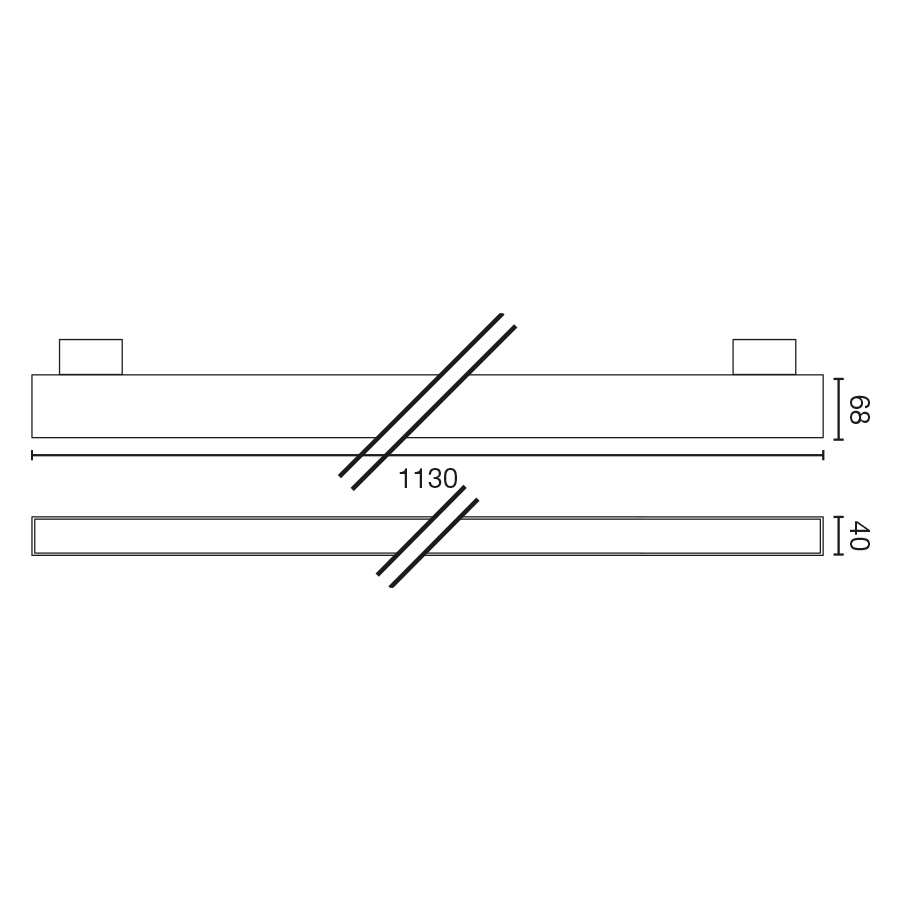

System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO TRACK 16W is a surface luminaire in colour white with a length of 1130 mm, with a colour temperature of 3000Kand asymmetric. Its UGR<19makes it an ideal choice for office applications.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Three-phase track
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 25W
Control system: On/off
Material
Body/Structure: Aluminium + PC
Finish
Body/Structure: White+Gloss Black
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 3000K
Lumens: 3008lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 90º
Eficiencia: 122
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Accesories
