VIA EVO surface 850 20W 3000K black DALI
Ref: 041005602D-110
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a surface mounted luminaire in colour black with a length of 850 mm, with a colour temperature of 3000K , a power of 20W.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 110V
Power supply current: 600 mA
Max. Power: 20W
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: Black
Diffuser: Opal
Lighting characteristics
Light source: SMD LED
Dimmable: Yes
Temperature: 3000K
Lumens: 2131lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 110º
Energy classification: C
Type of lighting: AMBIENTAL
Driver
Driver included: Yes
Driver regulation: DALI

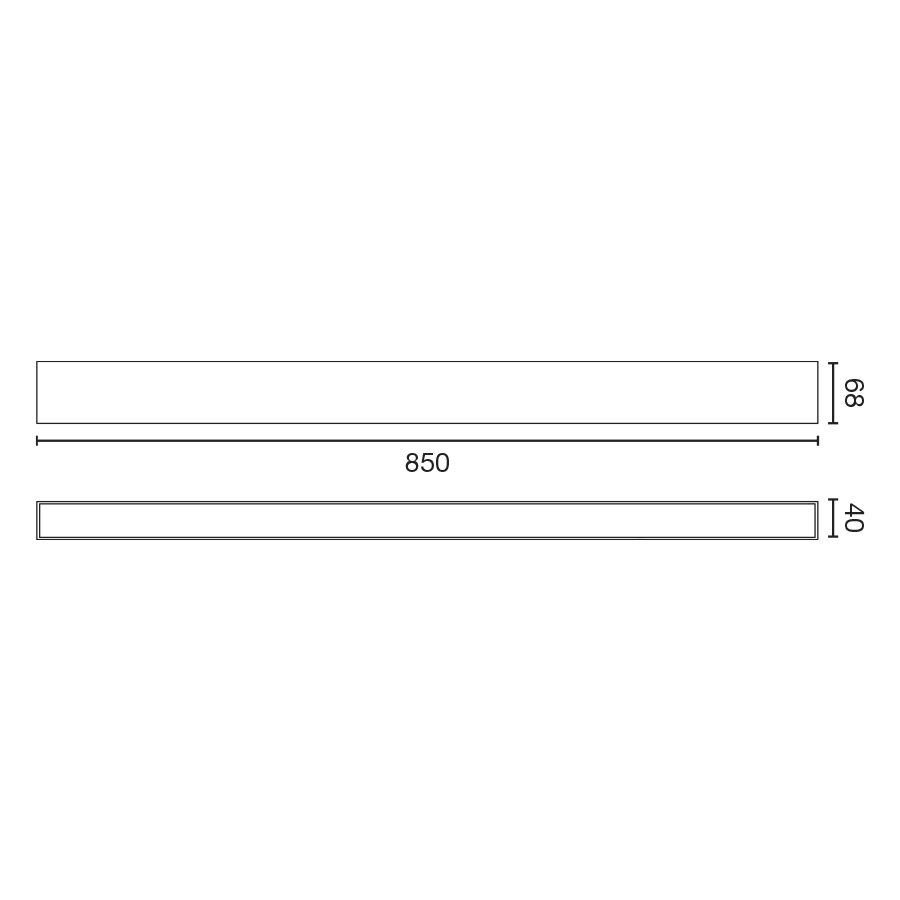

Measures
