VIA EVO surface 850 38W 3000K white DALI
Ref: 041005401D-110
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a surface in colour white with a length of 850 mm, with a colour temperature of 3000Ka power of 38W and a control system DALI.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 110V
Hertz: 50/60Hz
Max. Power: 38W
Control system: DALI
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 3000K
Lumens: 3808lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 110º
Energy classification: C
Eficiencia: 102
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: DALI
Accesories

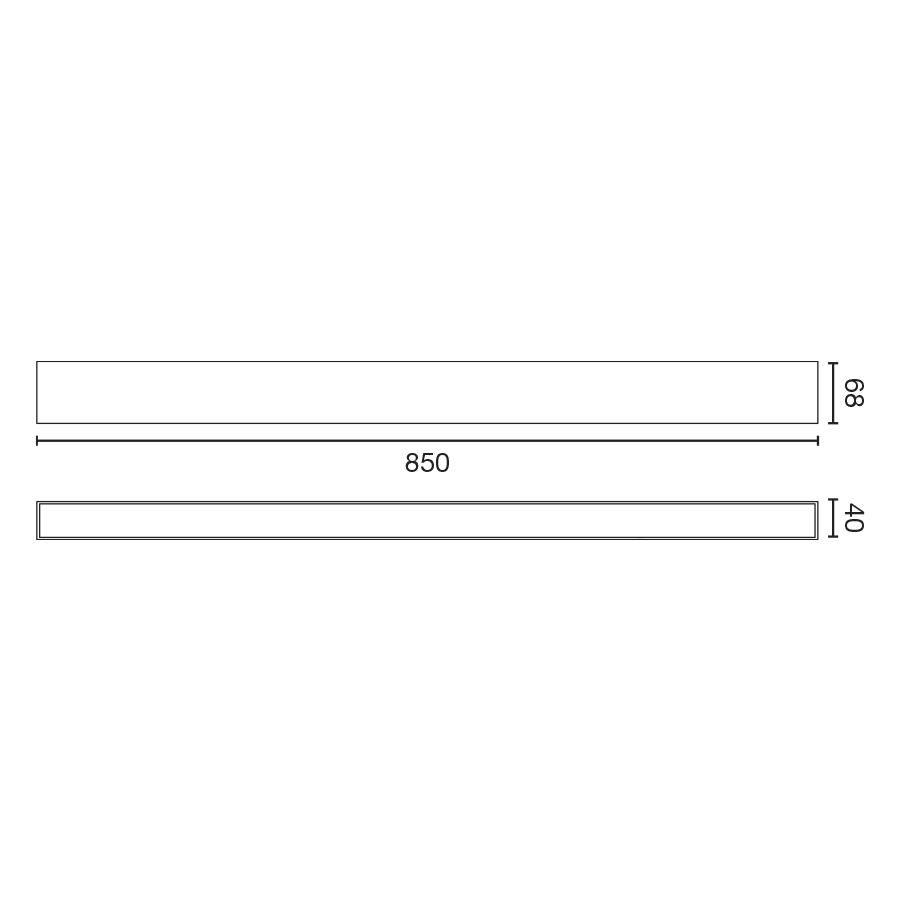

Measures
