VIA EVO surface 1130 27W 3000K white prismatic DALI
Ref: 041005301DU-110
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO is a surface mounted luminaire in colour white with a length of 1130 mm, with a colour temperature of 3000K , a power of 27W.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 110V
Power supply current: 800 mA
Max. Power: 27W
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Opal
Lighting characteristics
Light source: SMD LED
Dimmable: Yes
Temperature: 3000K
Lumens: 2313lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 90º
Energy classification: C
Type of lighting: AMBIENTAL
Driver
Driver included: Yes
Driver regulation: DALI

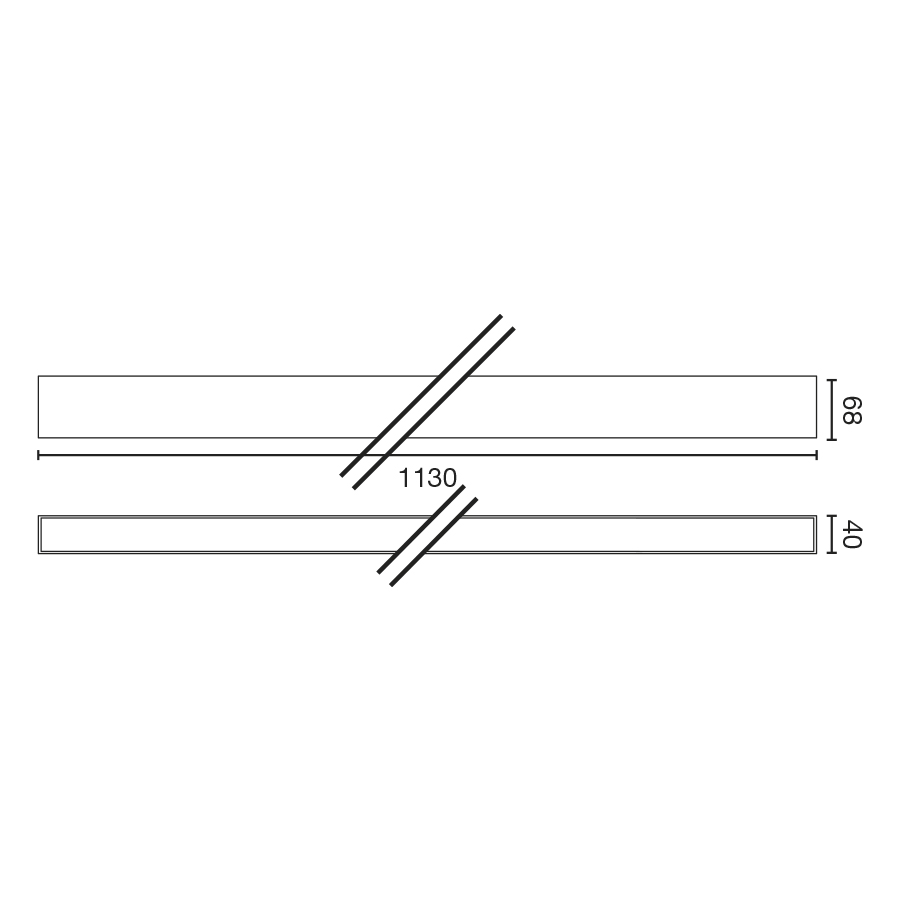

Measures
