Home >  ARCHITECTURAL >  TRACK LUMINAIRE AND TRACKS >  Three-phase track >  VIA EVO TRACK 570 surface white 15W 3000K
VIA EVO TRACK 570 surface white 15W 3000K
Ref: 0410T5901
Favourite
System designed for the general lighting of spaces. VIA EVO TRACK enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO TRACK 15W is a surface luminaire in colour white with a length of 570 mm and with a colour temperature of 3000K.
scroll to see more
Linear lighting system
VIA allows the creation of continuous lines of light. A system designed for general lighting of spaces such as offices.
Versatility
Linear luminaires in multiple sizes and configurations. Can be used in surface, suspended or recessed installations.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Three-phase track
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 15W
Control system: On/off
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 3000K
Lumens: 1392lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 110º
Energy classification: C
Eficiencia: 94
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Accesories
VIA EVO Accessory to continuous lines See more
Architectural
VIA EVO Accessory to continuous lines
Reference: 040000097
Dimensions and photometrics

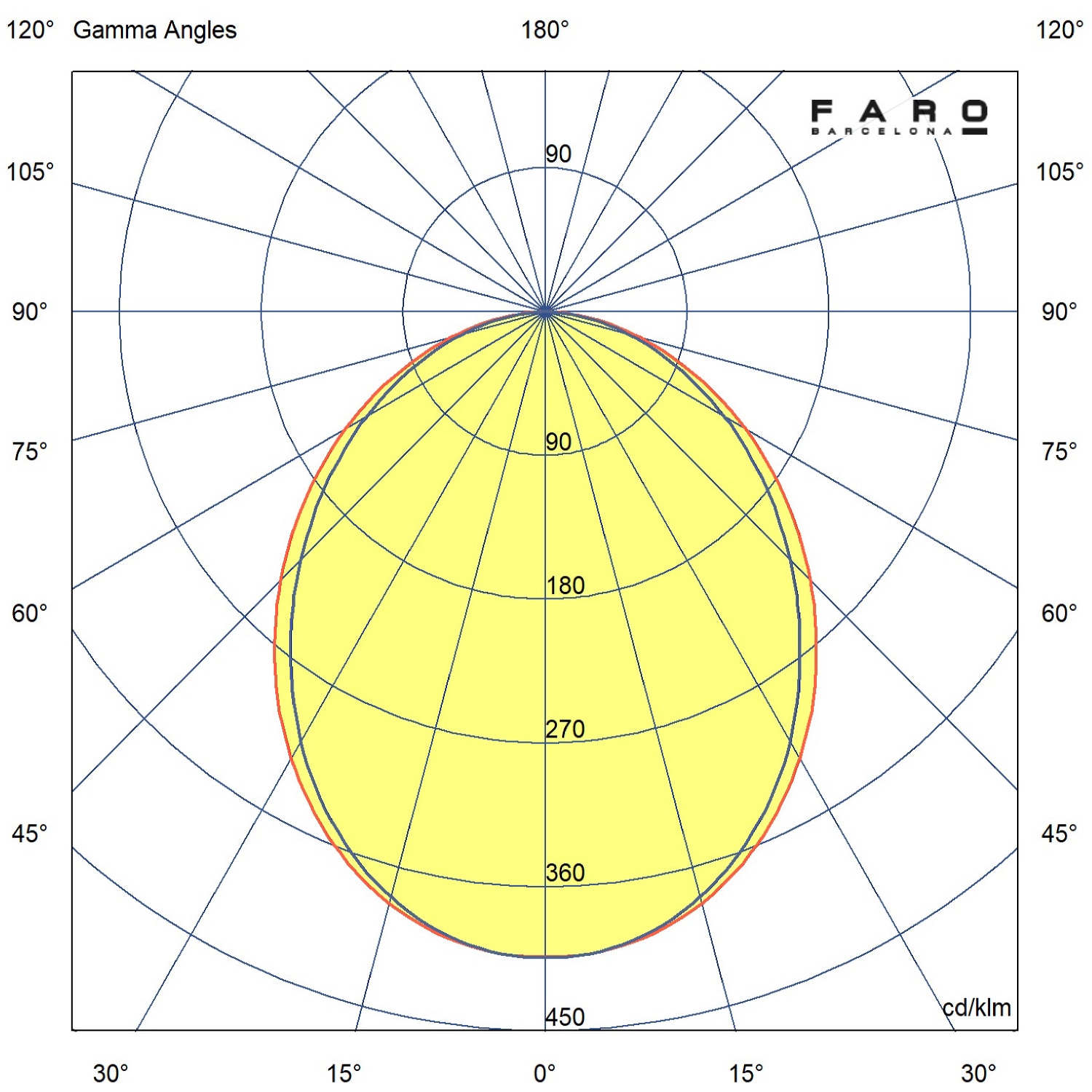

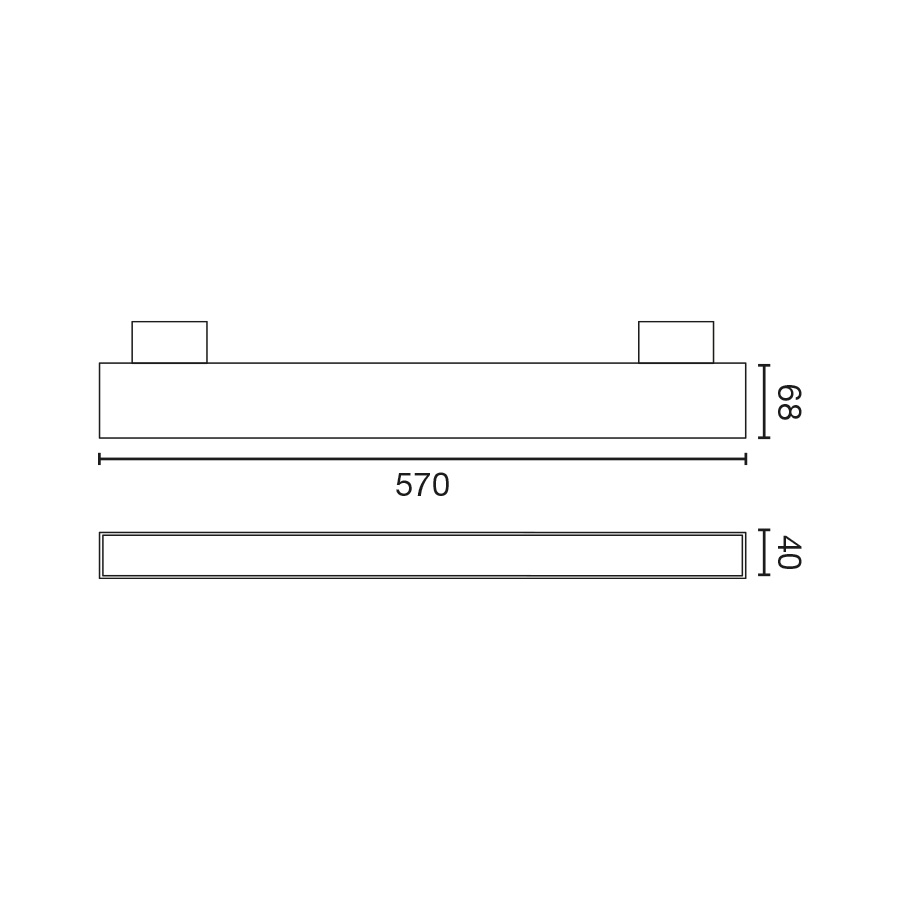

Technical drawing Photometric
