VIA EVO 1130 surface black 16W UGR<19 4000K Low Output asim
Ref: 0410212120
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO 16W is a surface luminaire in colour black with a length of 1130 mm, with a colour temperature of 4000Kand asymmetric. Its UGR<19makes it an ideal choice for office applications.
scroll to see more
Linear lighting system
VIA allows the creation of continuous lines of light. A system designed for general lighting of spaces such as offices.
Versatility
Linear luminaires in multiple sizes and configurations. Can be used in surface, suspended or recessed installations.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 17W
Control system: On/off
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: Black+Gloss Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 4000K
Lumens: 2169lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: ASIMº
Energy classification: C
Eficiencia: 124
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: TRIAC
Accesories

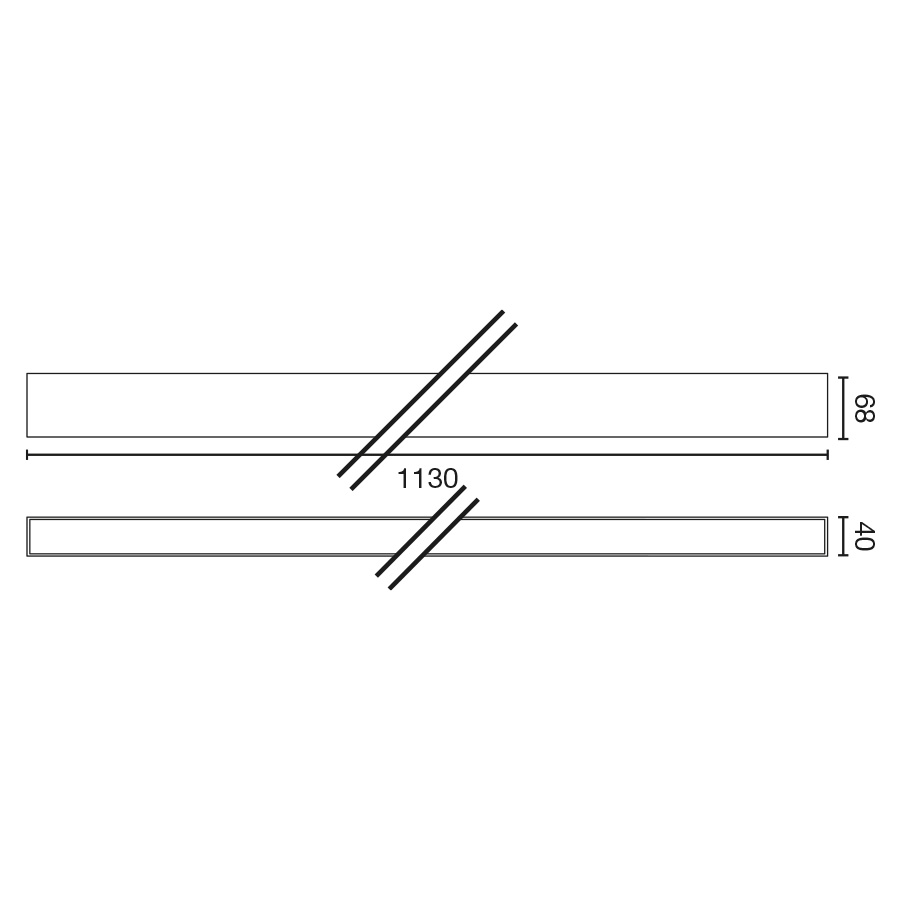

Dimensions and photometrics
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

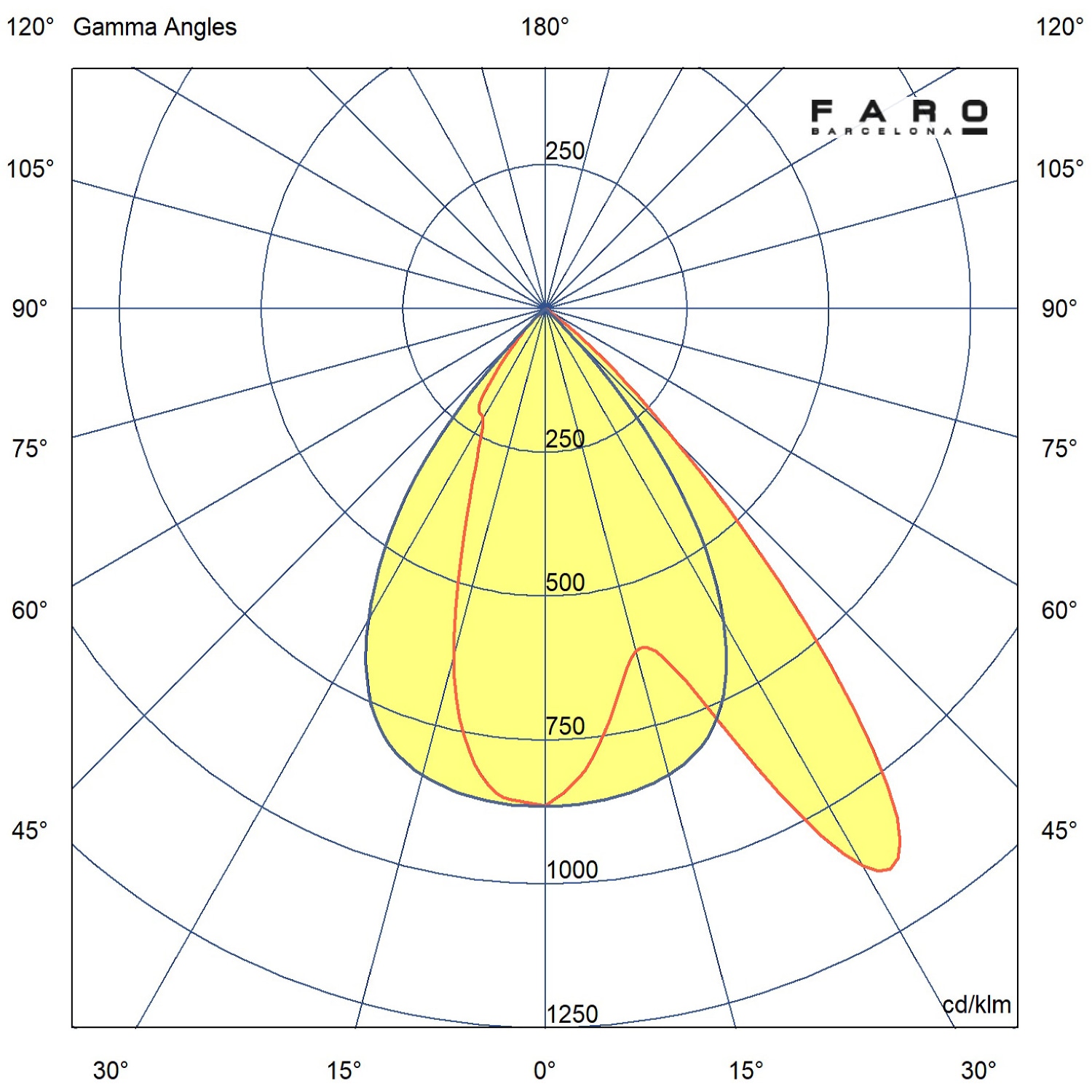

Photometric
Technical Files
Energy label
