VIA EVO 1130 surface white 16W UGR<19 4000K Low Output 80° DALI
Ref: 041021211D8
Favourite
System designed for the general lighting of spaces. VIA EVO enables the creation of continuous lines of light with the accessory Ref.040000097 (not included), or build different formats using corner luminaires or fittings. VIA EVO 16W is a surface luminaire in colour white with a length of 1130 mm, with a colour temperature of 4000K. Its UGR<19makes it an ideal choice for office applications.
scroll to see more
Linear lighting system
VIA allows the creation of continuous lines of light. A system designed for general lighting of spaces such as offices.
Versatility
Linear luminaires in multiple sizes and configurations. Can be used in surface, suspended or recessed installations.
Connectivity
We work with the DALI home automation system. This contributes to energy savings, improves the user experience and brings well-being to people.
  • Point to point control.
  • Program the switching on and off of luminaires.
  • Group the control of luminaires.
  • Create specific scenes and animations.
  • Create galleries for each type of space.
  • Modify the intensity of the light.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling, Wall
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 17W
Control system: DALI
UGR: 19
Material
Body/Structure: Aluminium + PC
Diffuser: PMMA
Finish
Body/Structure: White+Gloss Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 4000K
Lumens: 2381lm
CRI: 80
Lumen maintenance / LED lifespan: 50.000h L80 B10
Degrees of light aperture: 80º
Energy classification: B
Eficiencia: 138
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: Yes
Driver regulation: 0-10V
Accesories
VIA EVO Accessory to continuous lines See more
Architectural
VIA EVO Accessory to continuous lines
Reference: 040000097
VIA EVO Accessory wire suspension See more
Architectural
VIA EVO Accessory wire suspension
Reference: 040000098
VIA EVO Accessory suspension white DALI See more
Architectural
VIA EVO Accessory suspension white DALI
Reference: 040000095
VIA L surface without light white See more
Architectural
VIA L surface without light white
Reference: 040000091
Dimensions and photometrics

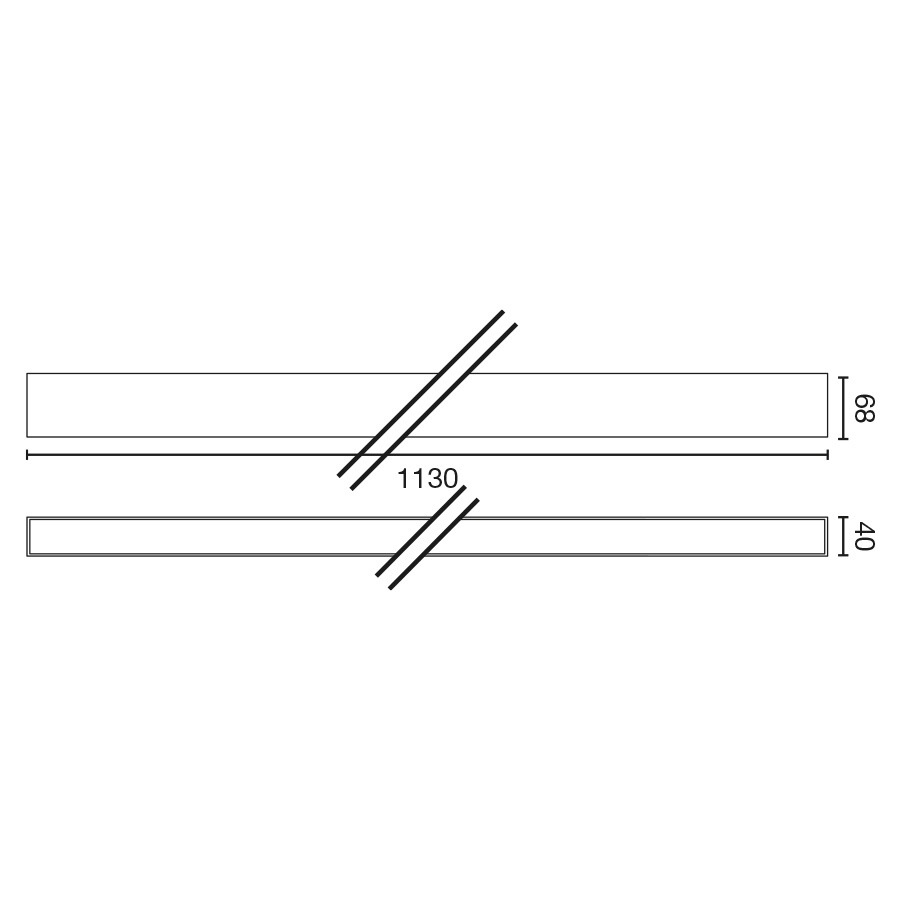

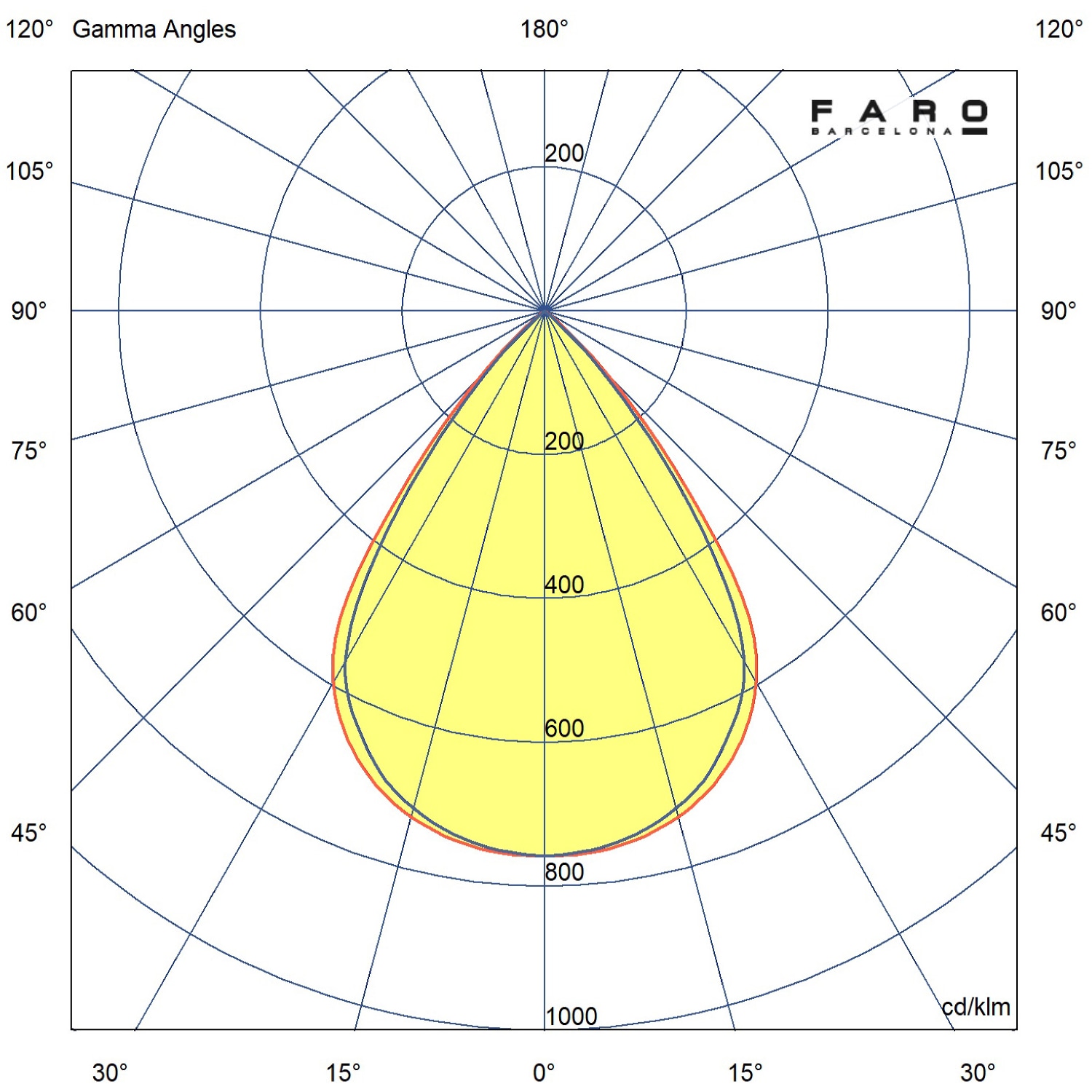

Technical drawing Photometric
