Home >  ARCHITECTURAL >  SPOTLIGHTS >  Three-phase track >  TARGET Black track projector 13W 35° 2700K CRI97 dali
TARGET Black track projector 13W 35° 2700K CRI97 dali
Ref: 0214X2732D
Favourite
Discontinued
Less is more. The design of the TARGET track projector achieves the minimum expression of visual volume, making the place appear spacious and bringing the architecture and the elements to be lit to the forefront. This Black TARGET track projector has a power of 13W, an angle of 35° a colour temperature of 2700K, CRI97 and has the dali control system.. A perfect option for commercial spaces, hotels, restaurants and retail.
scroll to see more
Built-in equipment in adapter
It allows you to have very little visual volume thanks to the use of one lens plus having the equipment on a rail.
High CRI, wide range of colour temperatures, and various optics
TARGET is the perfect choice for lighting retail projects. Ideal for commercial spaces, hotels, restaurants and shops, it offers a high colour rendering index (CRI), diverse optics and a wide range of colour temperatures. These features enhance the colours of products, making them more visible and attractive.
Connectivity
We work with the DALI home automation system. This contributes to energy savings, improves the user experience and brings well-being to people.
  • Point to point control.
  • Program the switching on and off of luminaires.
  • Group the control of luminaires.
  • Create specific scenes and animations.
  • Create galleries for each type of space.
  • Modify the intensity of the light.
Accessories
Combine the different accessories:
  • Stripped glass accessory: you will be able to generate an optimal elliptical lighting pattern for corridors, passageways and areas requiring longitudinal lighting. This pattern will extend the light beam both vertically and horizontally, reducing the number of units required.
  • Snoot accessory: you will obtain better glare control that avoids visual discomfort in peripheral visions and eliminates cuts in lateral light emissions.
  • Honeycomb accessory: you will have better glare control thanks to the honeycomb. It reduces glare over the entire lens surface and avoids visual discomfort in frontal vision.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Three-phase track
Type: II
IP: 20
voltage: 220V-240V
Power supply current: 350 mA
Hertz: 50/60Hz
Max. Power: 13W
Control system: DALI
Material
Body/Structure: Aluminium + Aluminium
Finish
Body/Structure: Matt Black+Matt Black
Lighting characteristics
Light source included: Yes
Light source: COB LED
Dimmable: Yes
Temperature: 2700K
MacAdam Steps: 2 SDCM
Lumens: 898lm
CRI: 97
Lumen maintenance / LED lifespan: 50.000h L70 B10
Degrees of light aperture: 35º
Energy classification: F
Eficiencia: 69,08
Tilt angle: 90
Rotation angle 1: 355
Type of lighting: ACENTO
Incandescent filament: 650
Driver
Driver regulation: DALI
Accesories
See more
Architectural
TARGET Black accessory Honeycomb
Reference: 011400096
TARGET Accessory striped glass See more
Architectural
TARGET Accessory striped glass
Reference: 011400097
TARGET Accessory Honeycomb See more
Architectural
TARGET Accessory Honeycomb
Reference: 011400098
Dimensions and photometrics

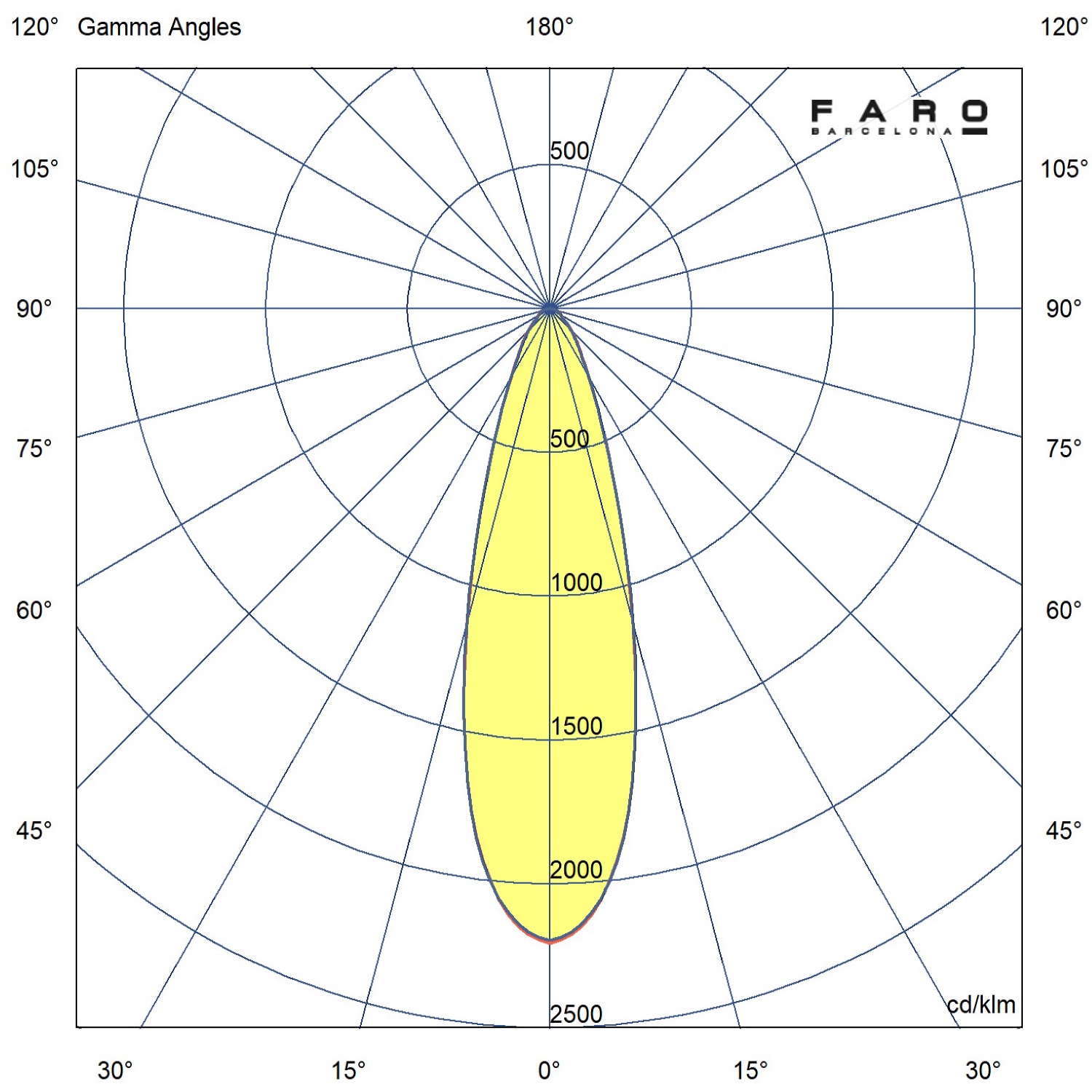

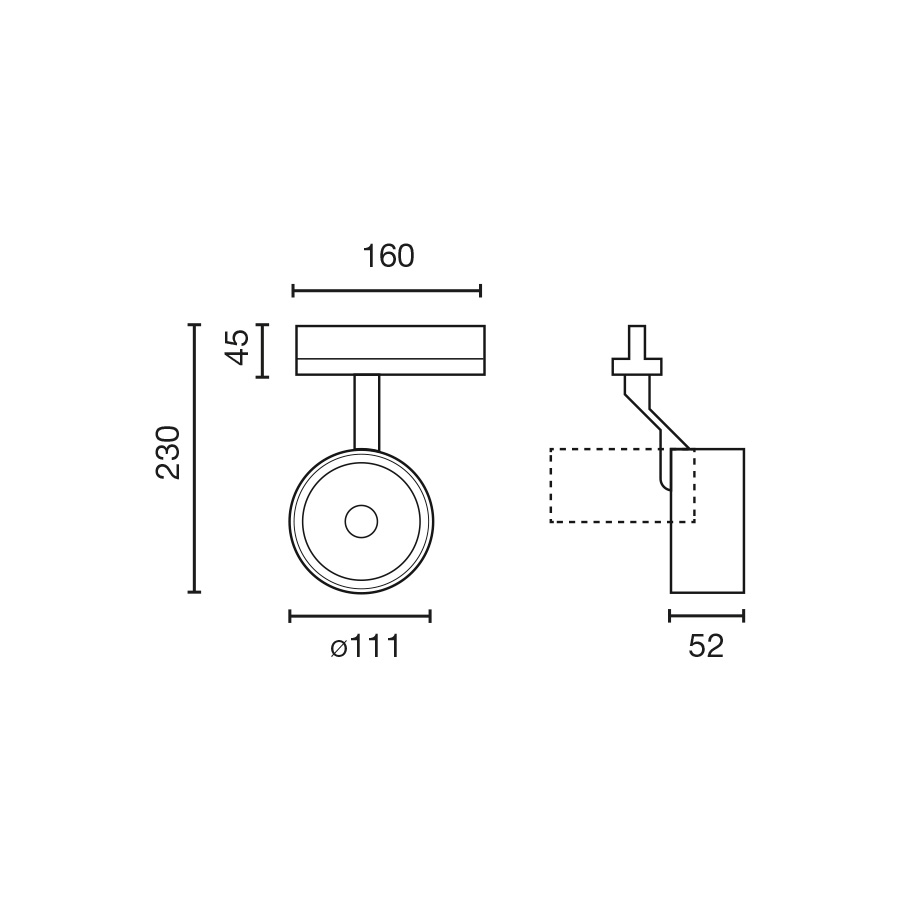

Technical drawing Photometric
