TAK SURFACE is a surface luminaire in black with 4000K color temperature, 20W power, CRI90 and prismatic diffuser for better glare control. Compatible with the TRIAC control system for smart indoor lighting.
Related products
Catalog
Technical features
View technical sheet
Download technical sheet
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
20W
Control system:
TRIAC
FSC/PEFC Wood with certificate:
No
UGR:
19
Material
Body/Structure:
Aluminium
Diffuser:
PMMA
Finish
Body/Structure:
Black
Diffuser:
Prism
Lighting characteristics
Light source:
SMD LED
Temperature:
4000K
Lumens:
1900lm
CRI:
90
Degrees of light aperture:
90º
Light direction:
Direct
Energy classification:
C
Driver
Driver included:
Yes
Power factor:
0.6

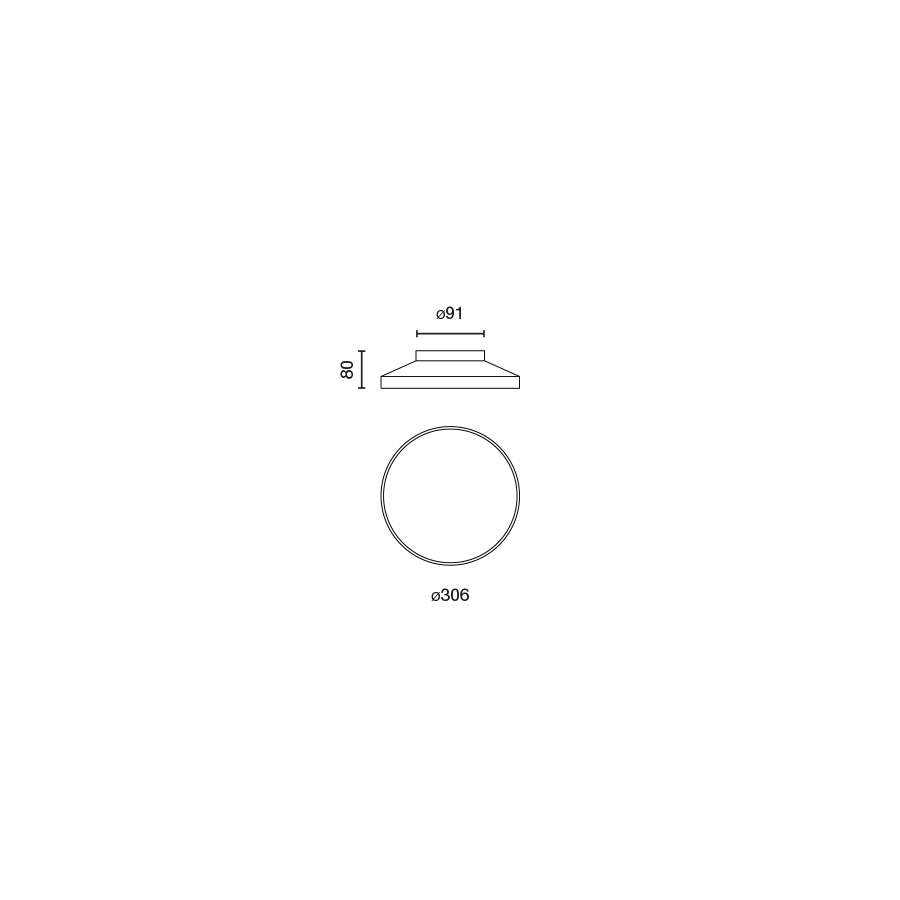

Dimensions and photometrics
Download files
Download files
Technical data sheet
Images

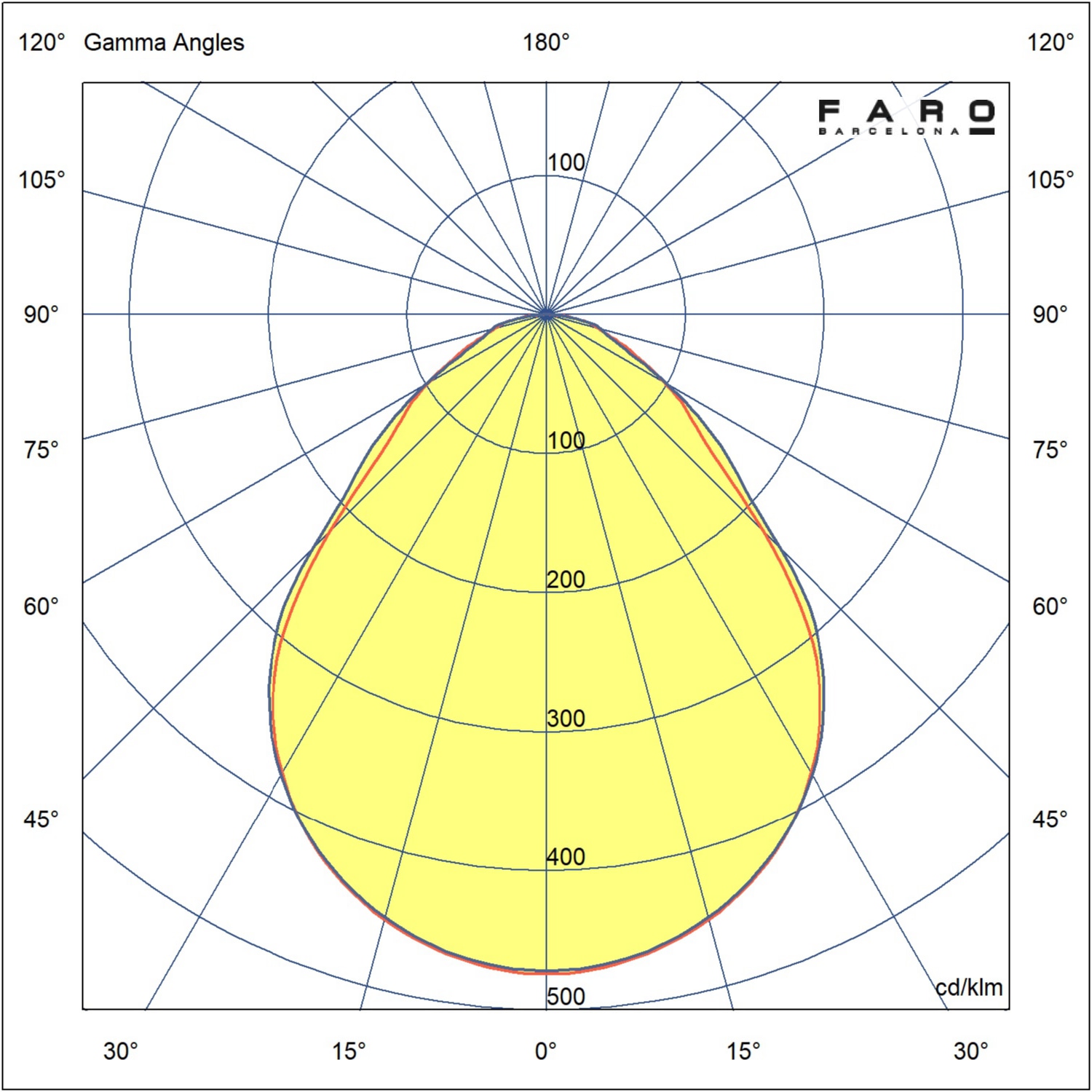

Photometric
2D / 3D
Energy label
