Home CEILING FANS WITH LIGHT Ceiling RUDDER TAK S Ceiling fan white/ash Wall Control black 2700K
RUDDER TAK S Ceiling fan white/ash Wall Control black 2700K
By Faro Lab
Ref: 34295RB2W
Favourite
Rudder is a ceiling fan surface in blade finish ash wood, with size S. Equipped with a motor DC, it offers 5 adjustable speeds and is suitable for sloped ceilings. Includes black wall control for a comfortable and functional 5‑speed operation.
Collection
scroll to see more
Wall controller black
Wired white rotary wall controller with 5 speeds. Direct control for fans without RF. Quick and reliable installation. Ask about the receiver compatible with your fan. For more information.
FSC wood certification
Its blades are made of FSC wood, which guarantees that it comes from responsibly managed forests.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “S” size fan is ideal for rooms smaller than 13 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Colour temperature
This fan has a colour temperature of 2700K, which will provide you with a warm light.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 20W
Fan Power (W): 3-5-9-14-21
Airflow (m3/min): 47-69-82-87-113
Airflow (CFM): 1678-2456-2898-3098-2989
RPM: 97-148-188-227-262
Reverse function: No
Engine type: DC
No. of blades: 3
Reversible blades: Yes
Pitched ceiling: Yes
Maximum tilt (º): 20
Downrod diameter: 26
FSC/PEFC Wood with certificate: Si
UGR: 19
Light kit model: Tak
Material
Body/Structure: Aluminium
Diffuser: PC
Blade material: Plywood
Finish
Body/Structure: Matt White
Diffuser: Prism
Blade finish: Ash Wood
Blade finish 2: Matt White
Lighting characteristics
Light source: SMD LED
Temperature: 2700K
Lumens: 1853lm
CRI: 90
Degrees of light aperture: 80º
Light direction: Direct
Energy classification: D
Additional information
Length of the included rods : 100
Optional downrod model: Universal 26mm

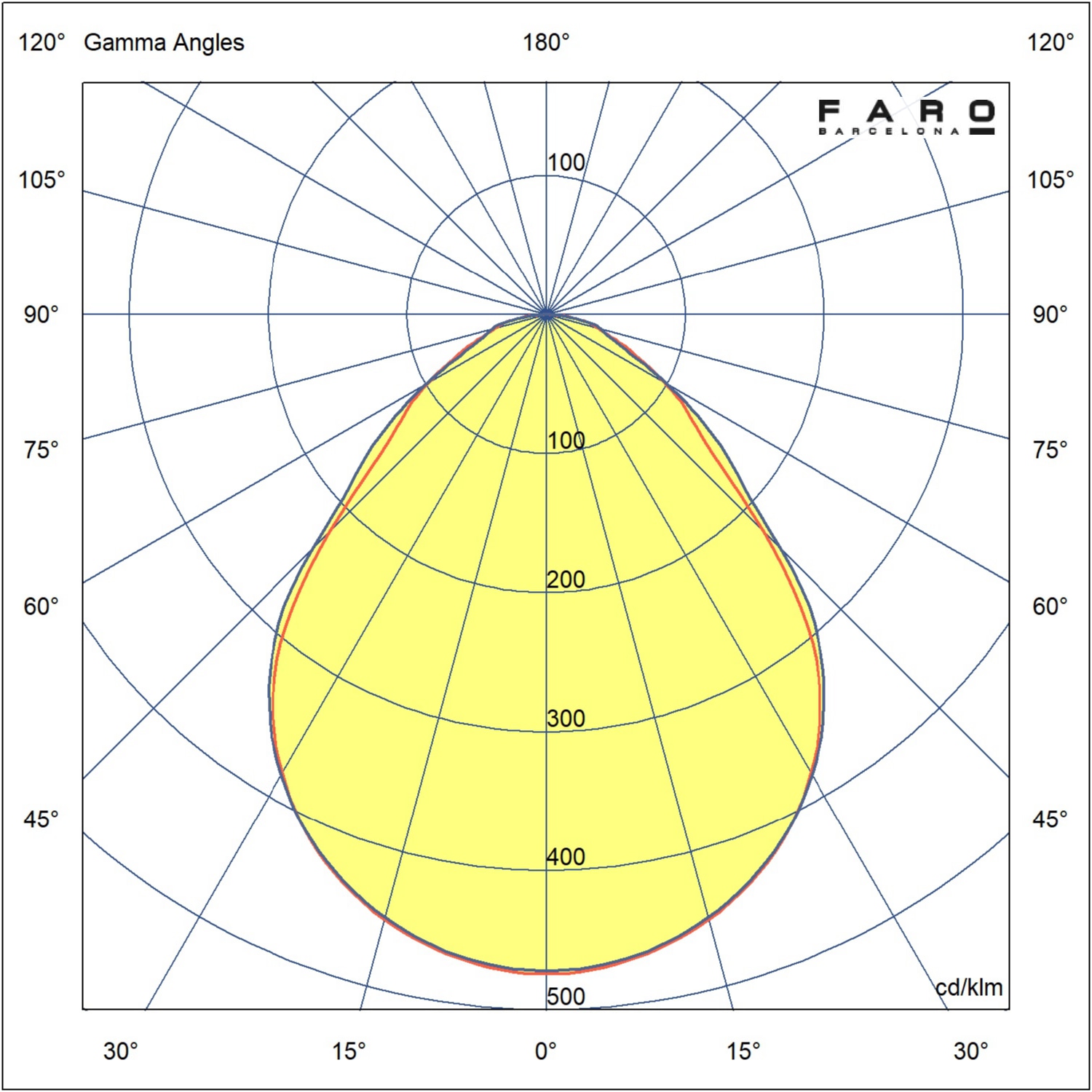

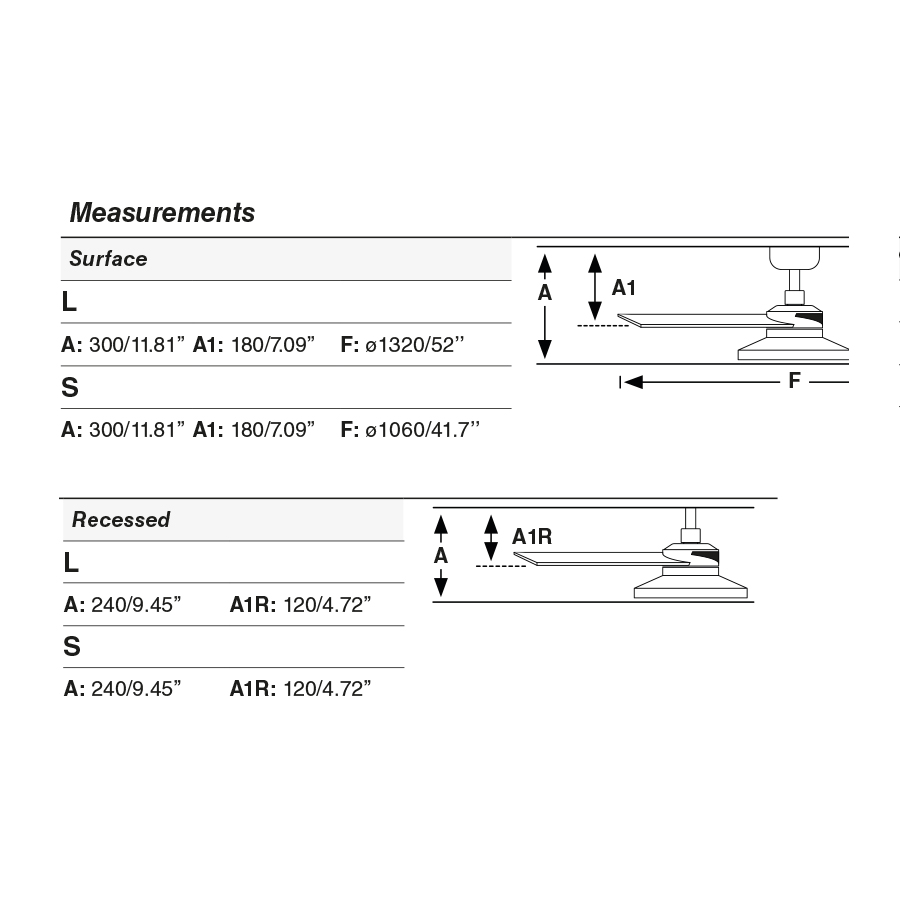

Dimensions and photometrics
