Punt Tub is a ceiling fan surface in blade finish matt black, with size M. Equipped with a motor DC, it offers 6 adjustable speeds, features a reverse function and is suitable for sloped ceilings.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a remote control which will allow you to control your fan in a more comfortable and simpler way. Discover here how to sync it.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Colour temperature
This fan has a colour temperature of 2700K, which will provide you with a warm light.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
20W
Fan Power (W):
5-7-9-13-19-28
Airflow (m3/min):
80-102-125-143-165-177
Airflow (CFM):
2877-3662-4485-5118-5924-6318
RPM:
90-115-135-158-185-210
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
No
Fan memory:
Yes
Light kit memory:
Yes
Confirmation sound on/off:
Yes
Remote control lock on/off:
Yes
UGR:
19
Light kit model:
Tak
Material
Body/Structure:
Steel
Diffuser:
PC
Blade material:
ABS
Finish
Body/Structure:
Matt Black
Diffuser:
Prism
Blade finish:
Matt Black
Lighting characteristics
Light source:
SMD LED
Temperature:
2700K
Lumens:
1853lm
CRI:
90
Degrees of light aperture:
80º
Light direction:
Direct
Energy classification:
D
Additional information
Optional downrod model:
No dispone

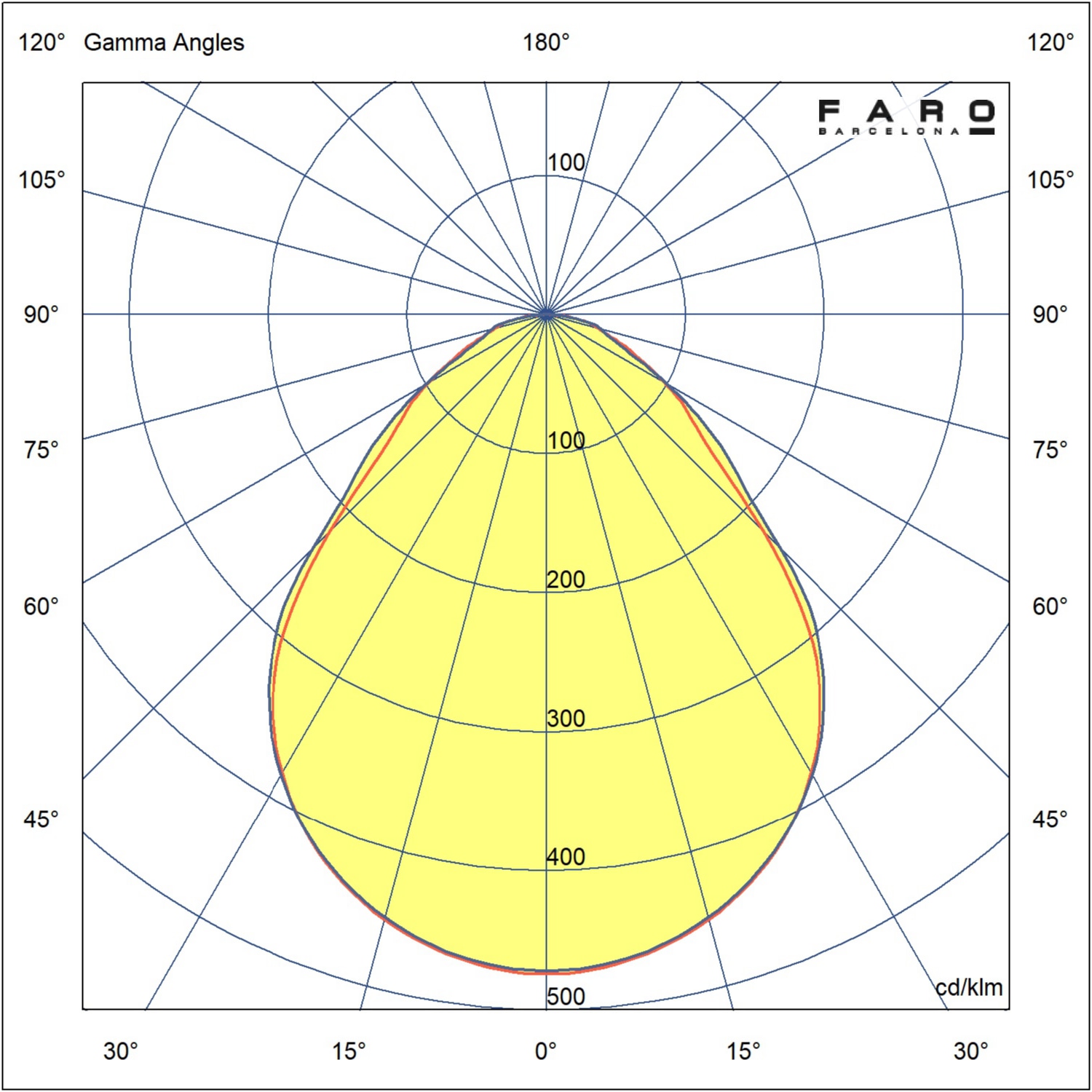

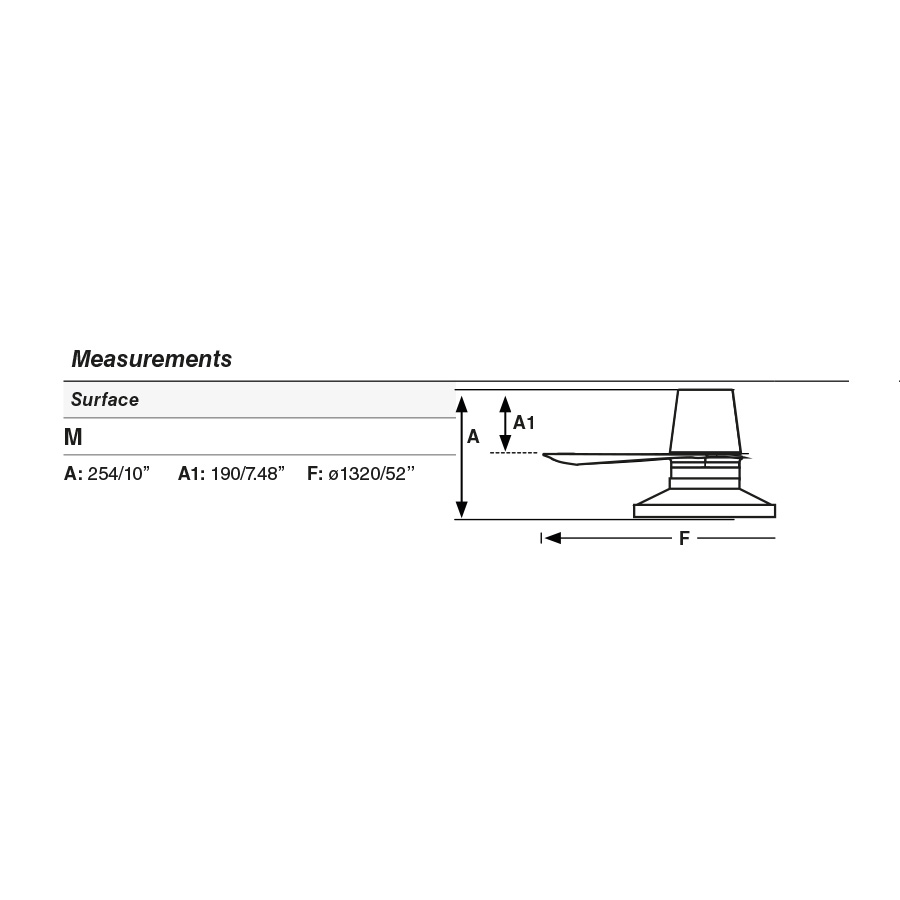

Dimensions and photometrics
