Punt Tub is a ceiling fan surface in blade finish matt white, with size M. Equipped with a motor DC, it offers 5 adjustable speeds and is suitable for sloped ceilings. Includes white wall control for a comfortable and functional 5‑speed operation.
Related products
Catalog
Wall controller white
Wired white rotary wall controller with 5 speeds. Direct control for fans without RF. Quick and reliable installation. Ask about the receiver compatible with your fan. For more information.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Colour temperature
This fan has a colour temperature of 4000K, which will provide you with a warm light.
Technical features
View technical sheet
Download technical sheet
Instructions
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
20W
Fan Power (W):
5-7-9-13-19
Airflow (m3/min):
80-102-125-143-165
Airflow (CFM):
2877-3662-4485-5118-5924
RPM:
90-115-135-158-185
Reverse function:
No
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
No
Maximum tilt (º):
20
UGR:
19
Light kit model:
Tak
Material
Body/Structure:
Steel
Diffuser:
PC
Blade material:
ABS
Finish
Body/Structure:
Matt White
Diffuser:
Prism
Blade finish:
Matt White
Lighting characteristics
Light source:
SMD LED
Temperature:
4000K
Lumens:
1900lm
CRI:
90
Degrees of light aperture:
80º
Light direction:
Direct
Energy classification:
C
Additional information
Optional downrod model:
No dispone

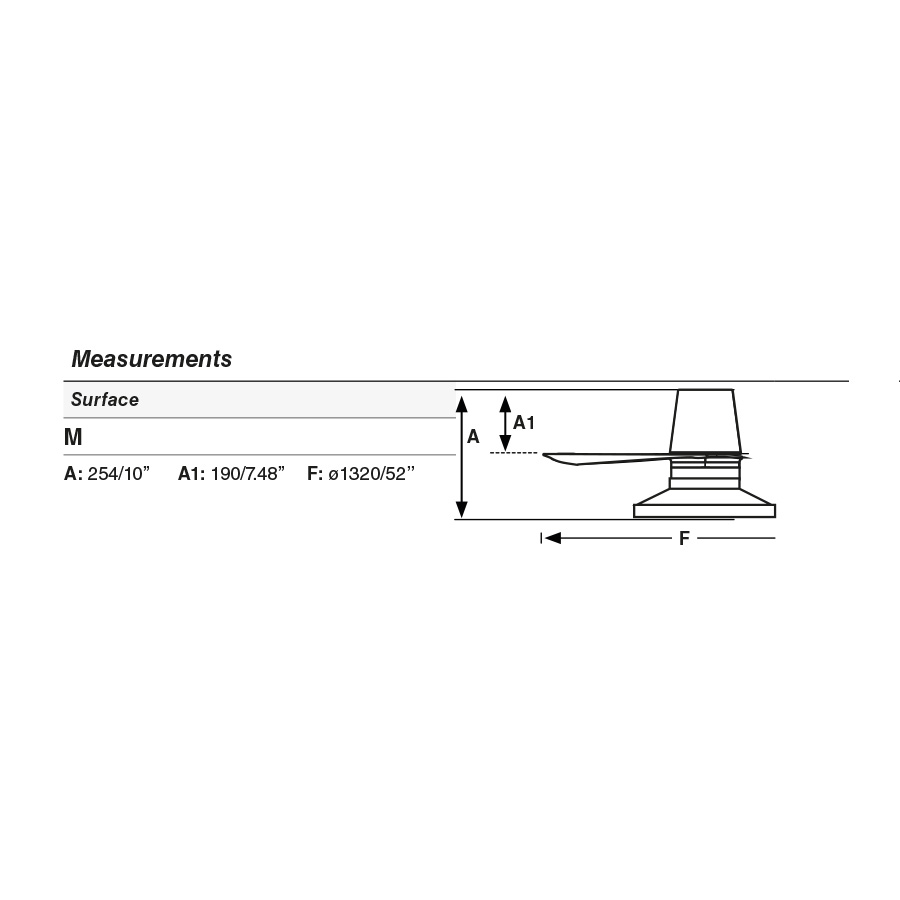

Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images

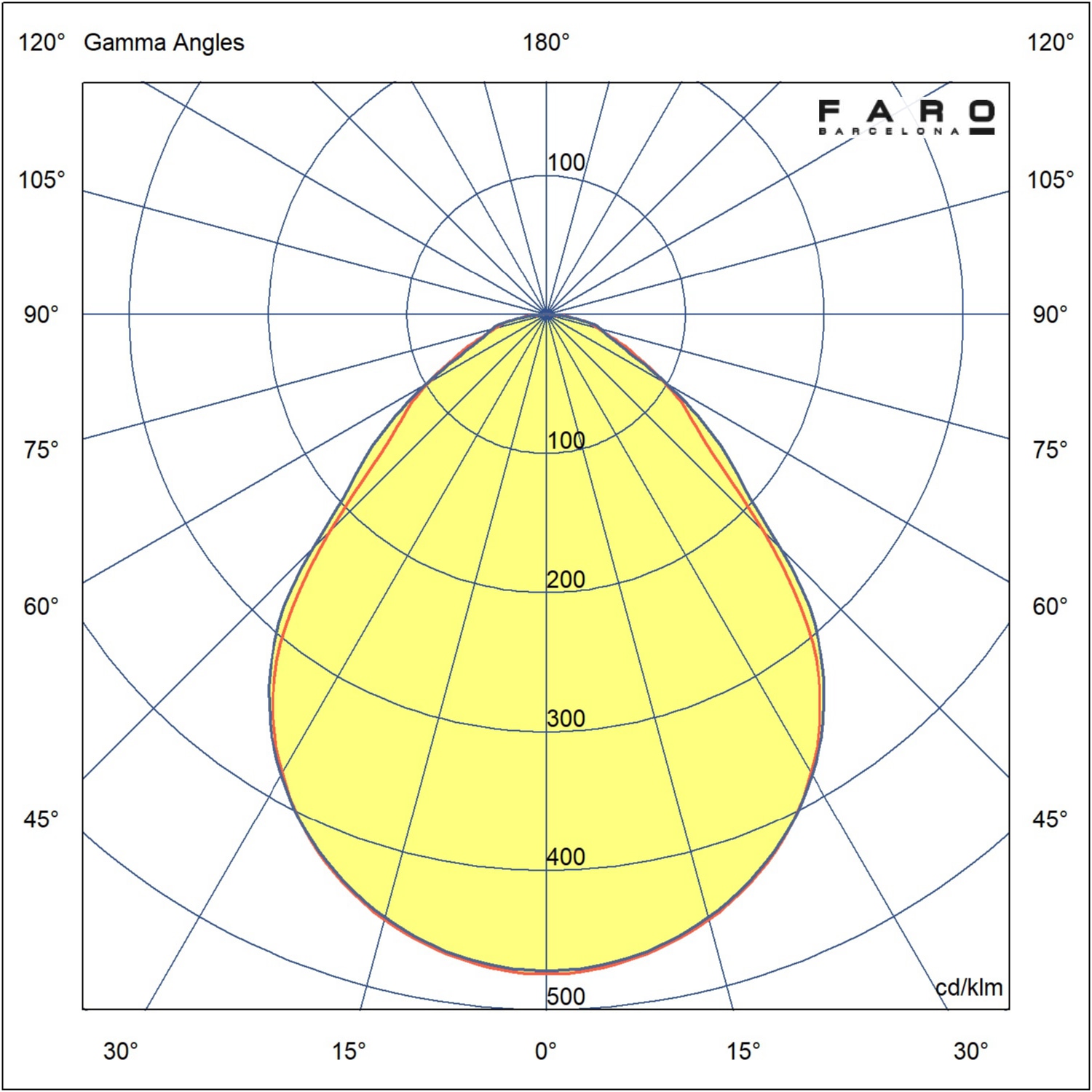

Photometric
