Home >  ARCHITECTURAL >  TRACK LUMINAIRE AND TRACKS >  Neso track >  NESO LINE32 3000K white DALI
NESO LINE32 3000K white DALI
Ref: 5010493001D
Favourite
NESO LINE is a white luminaire of the NESO family. It is added to the rails with the magnetic system. Measures 32cm. The DALI system enables light intensity to be regulated. With a heat temperature of 3000 K, this downlight allows warm, comfortable atmospheres to be created.
scroll to see more
Magnetic
Neso is a magnetic track system that provides the flexibility to combine different types of luminaires to achieve general and accent lighting. The luminaires are attached to the track with magnets, allowing for easy and hassle-free repositioning - unleash your imagination and creativity to the fullest!
Versatility
Neso integrates perfectly into the architecture. You can install it on the ceiling or wall and make all the combinations you want.Tracks are available for recessed, suspended and surface installation.
Connectivity
We work with the DALI home automation system. This contributes to energy savings, improves the user experience and brings well-being to people.
  • Point to point control.
  • Program the switching on and off of luminaires.
  • Group the control of luminaires.
  • Create specific scenes and animations.
  • Create galleries for each type of space.
  • Modify the intensity of the light.
ARCHITECTURAL CONFIGURATOR
Discover
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Recommended electrical equipment
Sales material
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: CARRIL NESO
Type: III
IP: 20
voltage: 24VDC
Max. Power: 13W
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 3000K
Lumens: 920lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10
Energy classification: E
Type of lighting: AMBIENTAL
Driver
Driver included: No
Driver regulation: DALI
Recommended electrical equipment
POWER SUPPLY 24VDC 120W See more
Architectural
POWER SUPPLY 24VDC 120W
Reference: 98324120
Sales material
FOCUS ON Neso
Dimensions and photometrics
See 3D projection

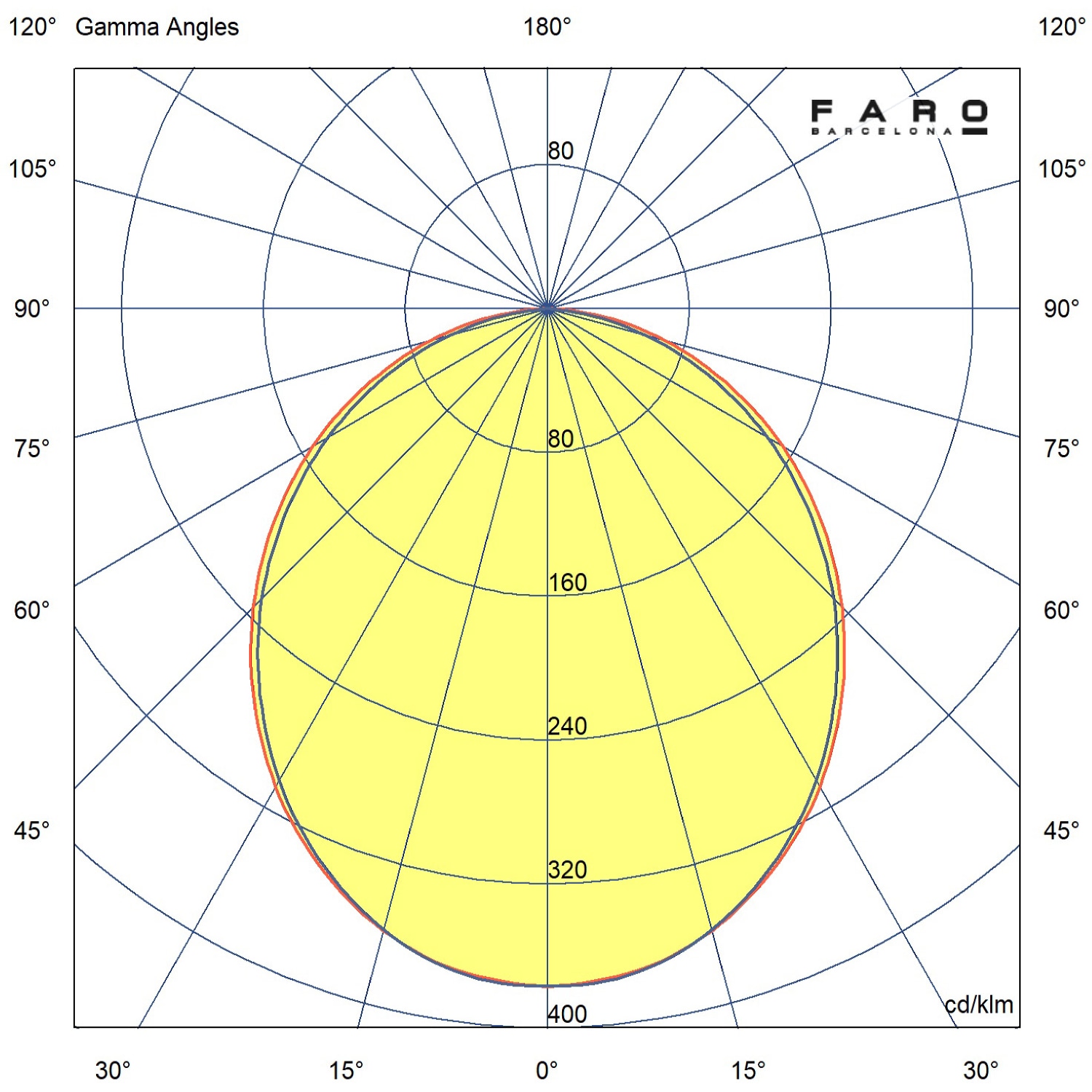

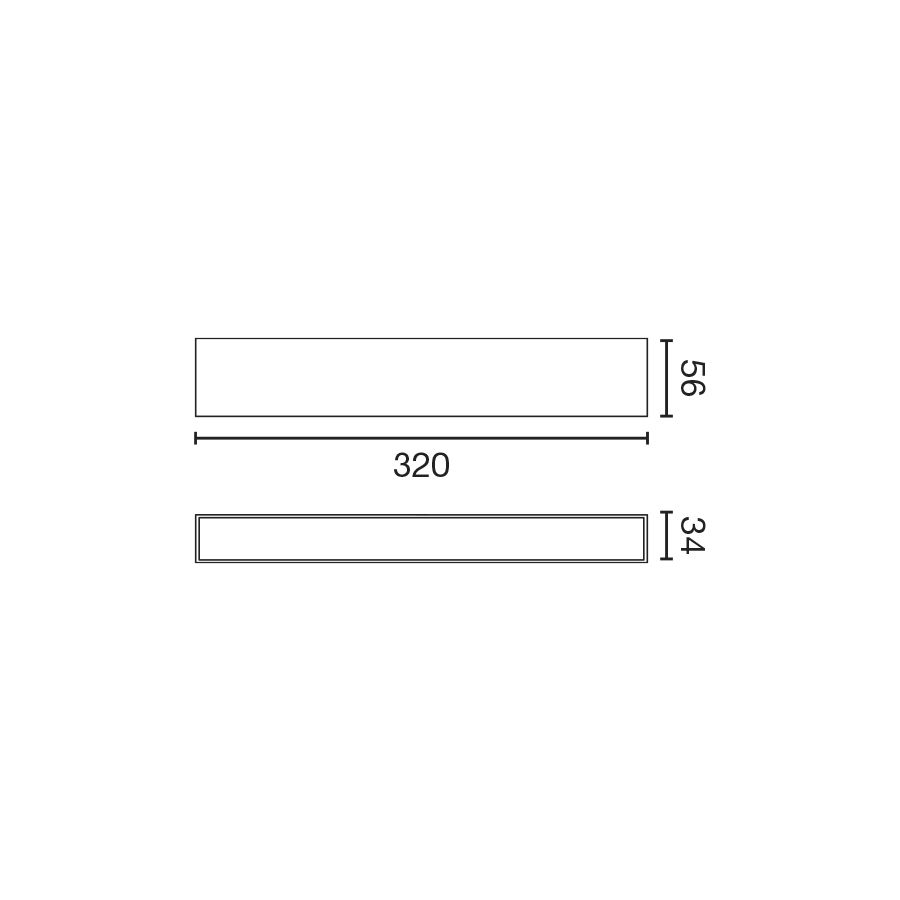

Technical drawing Photometric
