Home ARCHITECTURAL LINEAR SYSTEMS Ceiling LUVA DECO 840 Surface black 9W 3000K
LUVA DECO 840 Surface black 9W 3000K
Ref: 044129302
Favourite
LUVA DECO 840 is a black linear system designed by Faro Lab, with a minimalist look, very slim profile and opal diffuser. Its decorative design allows mechanical and electrical connection, with simple ON/OFF control.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: III
IP: 20
voltage: 48VDC
Max. Power: 9W
Control system: On/off
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: Black
Diffuser: Opal
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Temperature: 3000K
Lumens: 858lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L90 B10
Degrees of light aperture: 100º
Light direction: Direct
Driver
Driver included: No
Accesories
Recommended electrical equipment

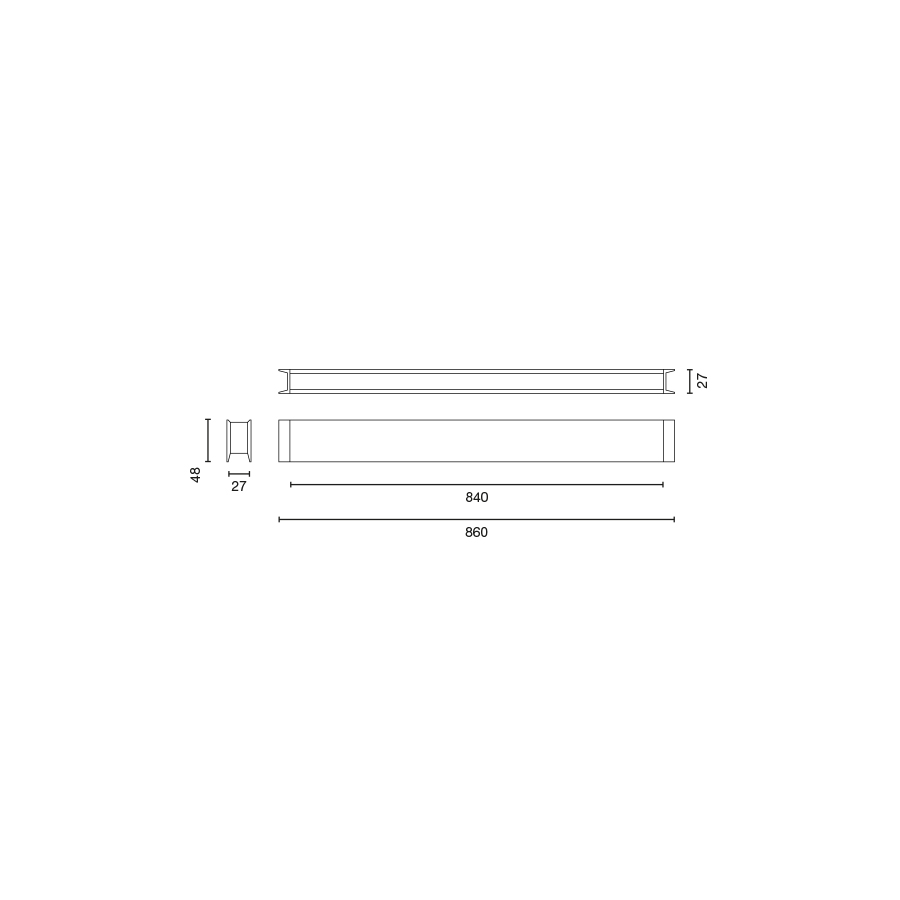

Dimensions and photometrics
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

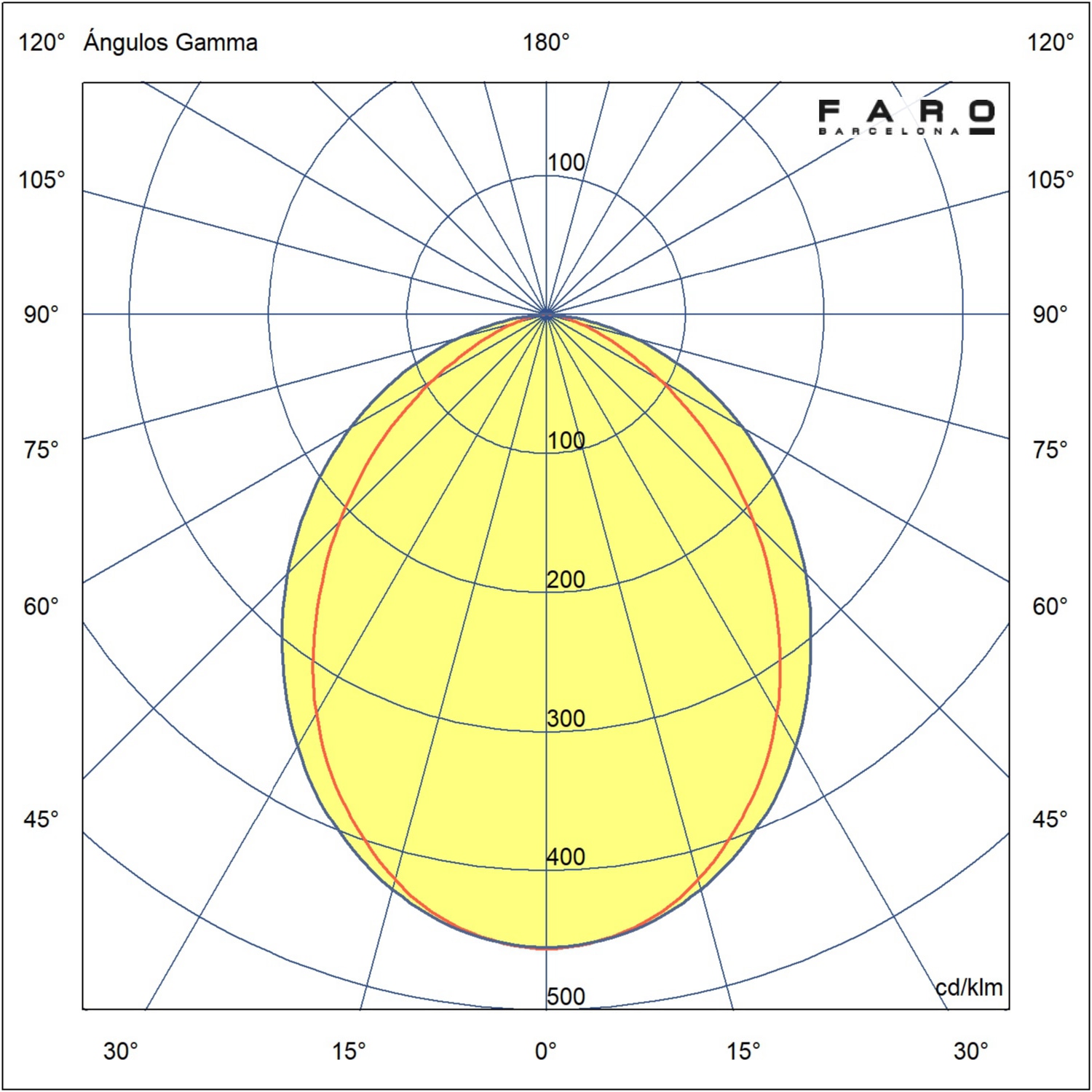

Photometric
