Home >  ARCHITECTURAL >  LINEAR SYSTEMS >  Ceiling >  LUVA DECO 840 Surface white 9W 3000K DALI
LUVA DECO 840 Surface white 9W 3000K DALI
Ref: 044129301D
Favourite
LUVA DECO 840 is a white linear system designed by Faro Lab, with a minimalist look, very slim profile and opal diffuser. Its decorative design allows mechanical and electrical connection, with simple DALI control.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: III
IP: 20
voltage: 48VDC
Max. Power: 9W
Control system: DALI
Material
Body/Structure: Aluminium
Diffuser: PMMA
Finish
Body/Structure: White
Diffuser: Opal
Lighting characteristics
Light source: SMD LED
Temperature: 3000K
Lumens: 858lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L90 B10
Degrees of light aperture: 100º
Light direction: Direct
Driver
Driver included: No
Recommended electrical equipment
150W 220-240V 48V IND driver See more
Architectural
150W 220-240V 48V IND driver
Reference: 98348150
Dimensions and photometrics

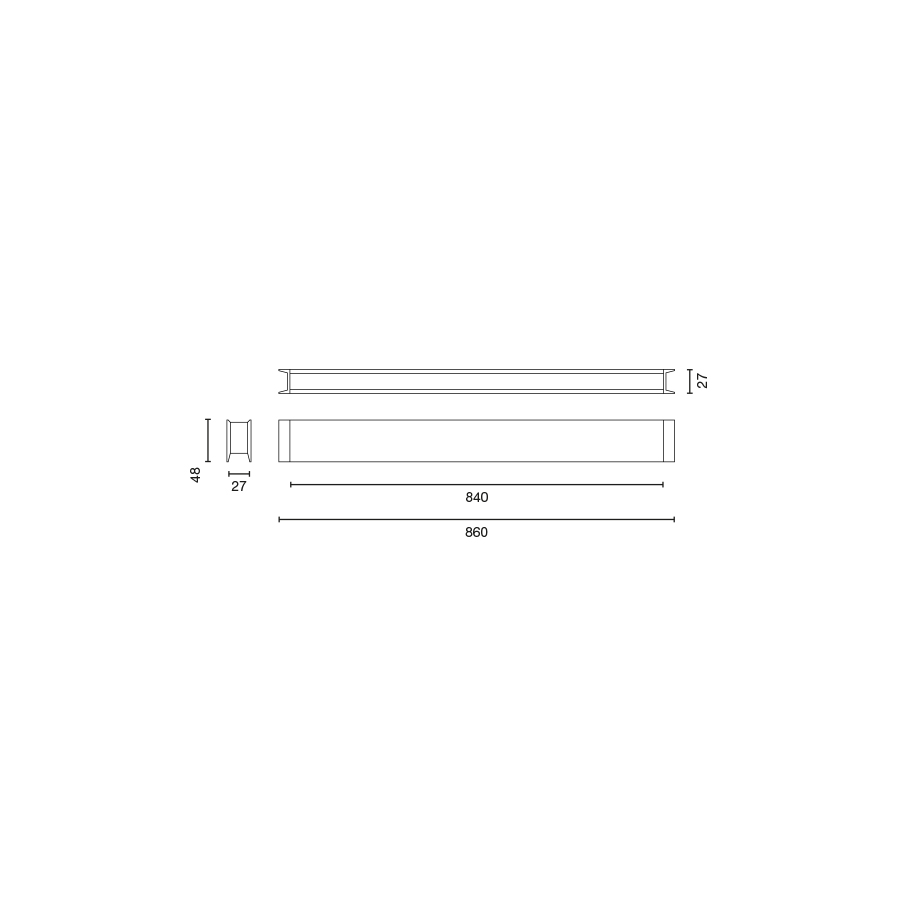

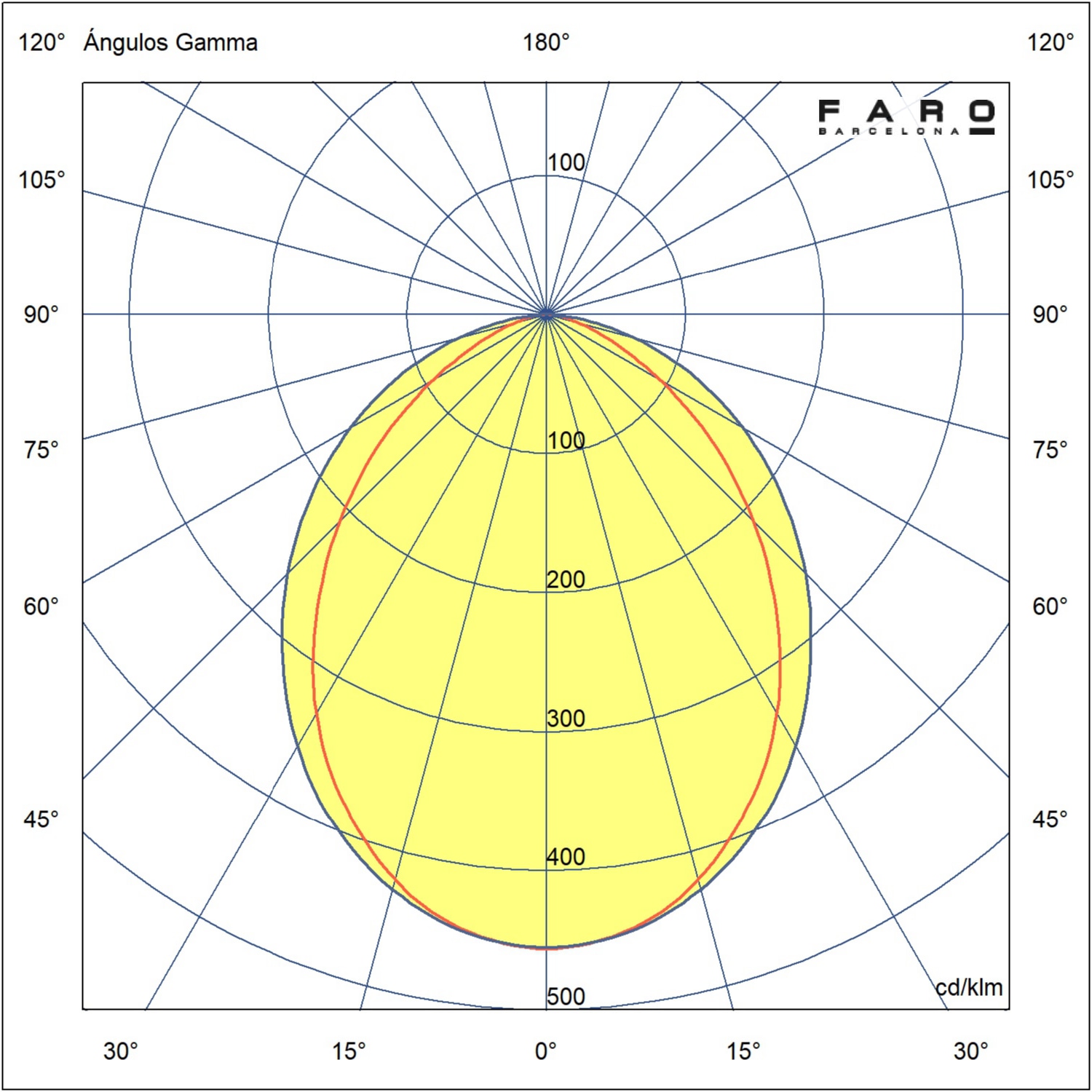

Technical drawing Photometric
