LUVA VISION 1120 Surface black 16W 4000K
Ref: 044039402
Favourite
LUVA VISION 1120 is a black linear system designed by Faro Lab, featuring a minimalist look, very slim profile and UGR, ideal for workspaces. It allows mechanical and electrical connection with simple ON/OFF control.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: III
IP: 20
voltage: 48VDC
Max. Power: 16W
Control system: On/off
UGR: 19
Material
Body/Structure: ALUMINIO + PMMA
Diffuser: PMMA
Finish
Body/Structure: Black+Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: No
Temperature: 4000K
Lumens: 1952lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L90 B10
Degrees of light aperture: 60º
Light direction: Direct
Energy classification: D
Driver
Driver included: No
Accesories
LUVA Black suspension tensioner no cable See more
Architectural
LUVA Black suspension tensioner no cable
Reference: 0440100306
LUVA Mechanical connector See more
Architectural
LUVA Mechanical connector
Reference: 0440100309
Recommended electrical equipment
150W 220-240V 48V IND driver See more
Architectural
150W 220-240V 48V IND driver
Reference: 98348150
Dimensions and photometrics

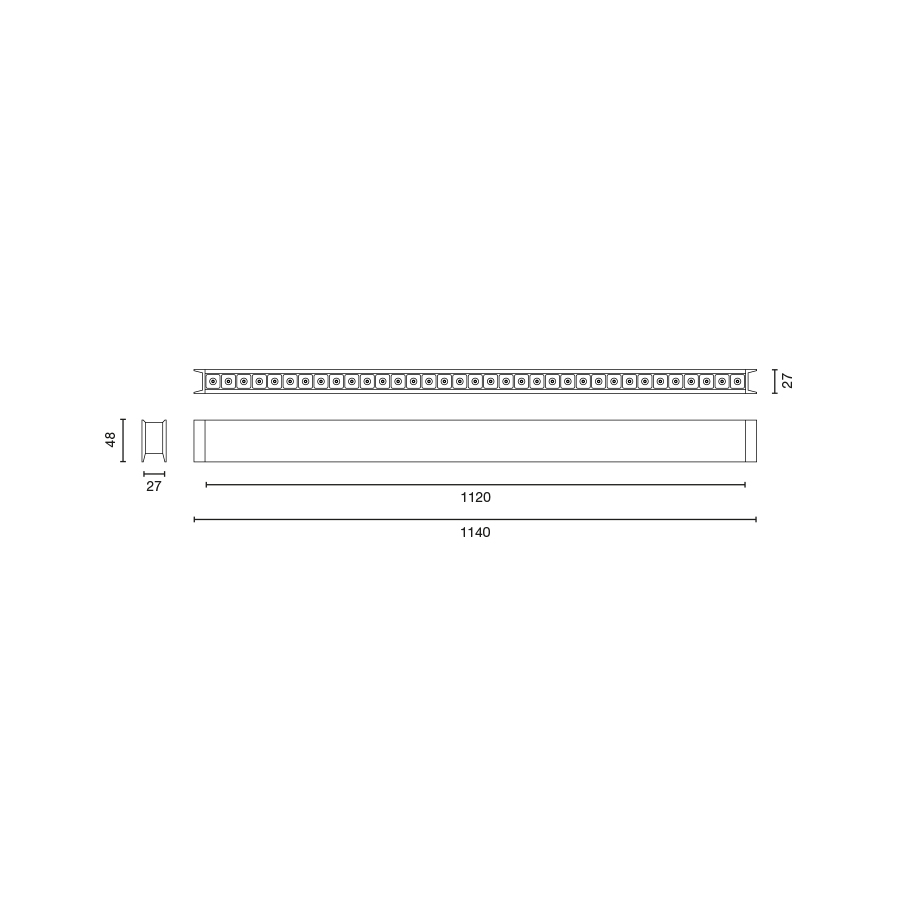

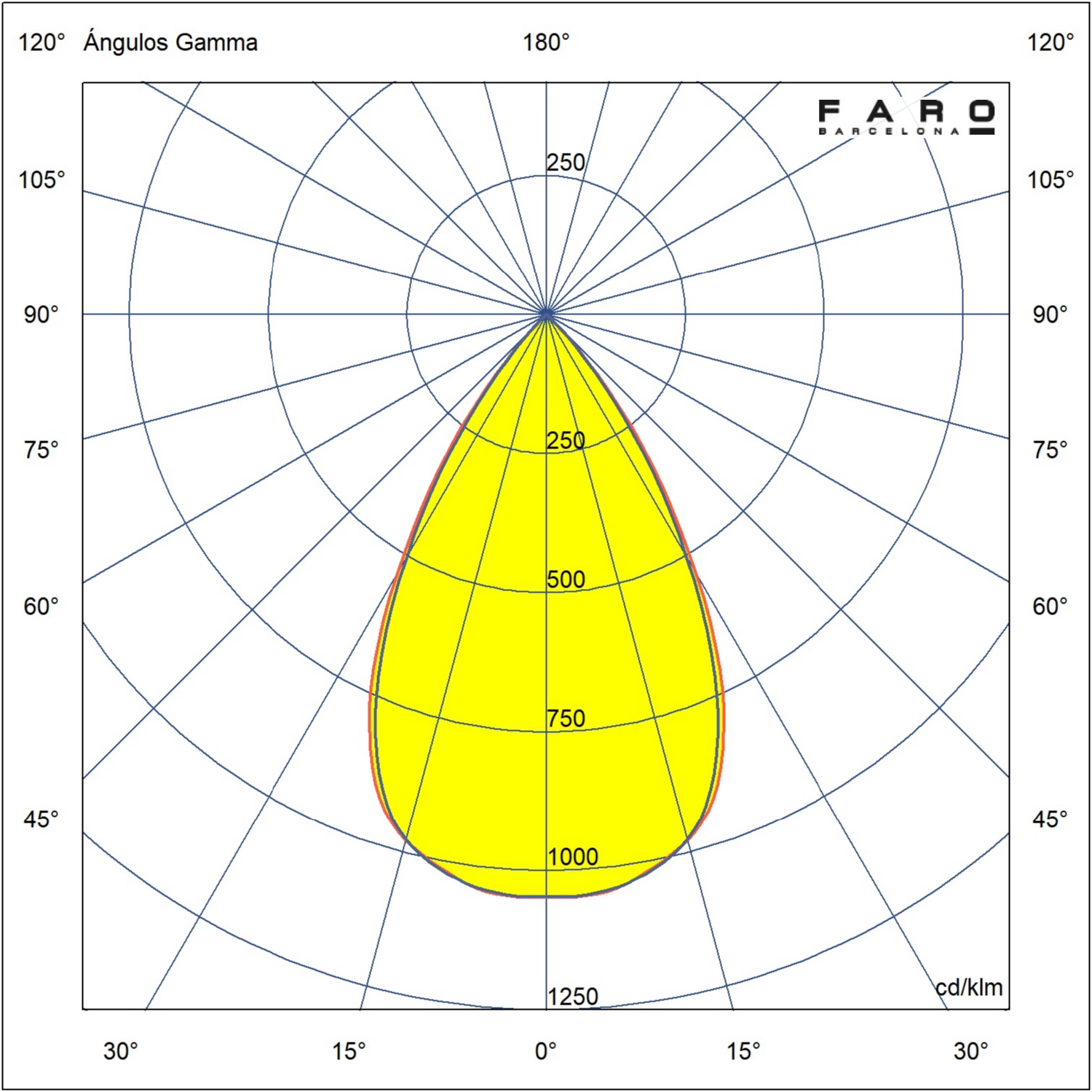

Technical drawing Photometric
