LUVA VISION 570 Surface black 8W 4000K CASAMBI
Ref: 044019402W
Favourite
LUVA VISION 570 is a black linear system designed by Faro Lab, featuring a minimalist look, very slim profile and UGR, ideal for workspaces. It allows mechanical and electrical connection, with point-to-point control via CASAMBI.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: III
IP: 20
voltage: 48VDC
Max. Power: 8W
Control system: CASAMBI
UGR: 19
Material
Body/Structure: ALUMINIO + PMMA
Diffuser: PMMA
Finish
Body/Structure: Black+Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Dimmable: Yes
Temperature: 4000K
Lumens: 1002lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L90 B10
Degrees of light aperture: 60º
Light direction: Direct
Energy classification: D
Driver
Driver included: No
Accesories
LUVA Black suspension tensioner no cable See more
Architectural
LUVA Black suspension tensioner no cable
Reference: 0440100306
LUVA Mechanical connector See more
Architectural
LUVA Mechanical connector
Reference: 0440100309
Recommended electrical equipment
150W 220-240V 48V IND driver See more
Architectural
150W 220-240V 48V IND driver
Reference: 98348150
Dimensions and photometrics

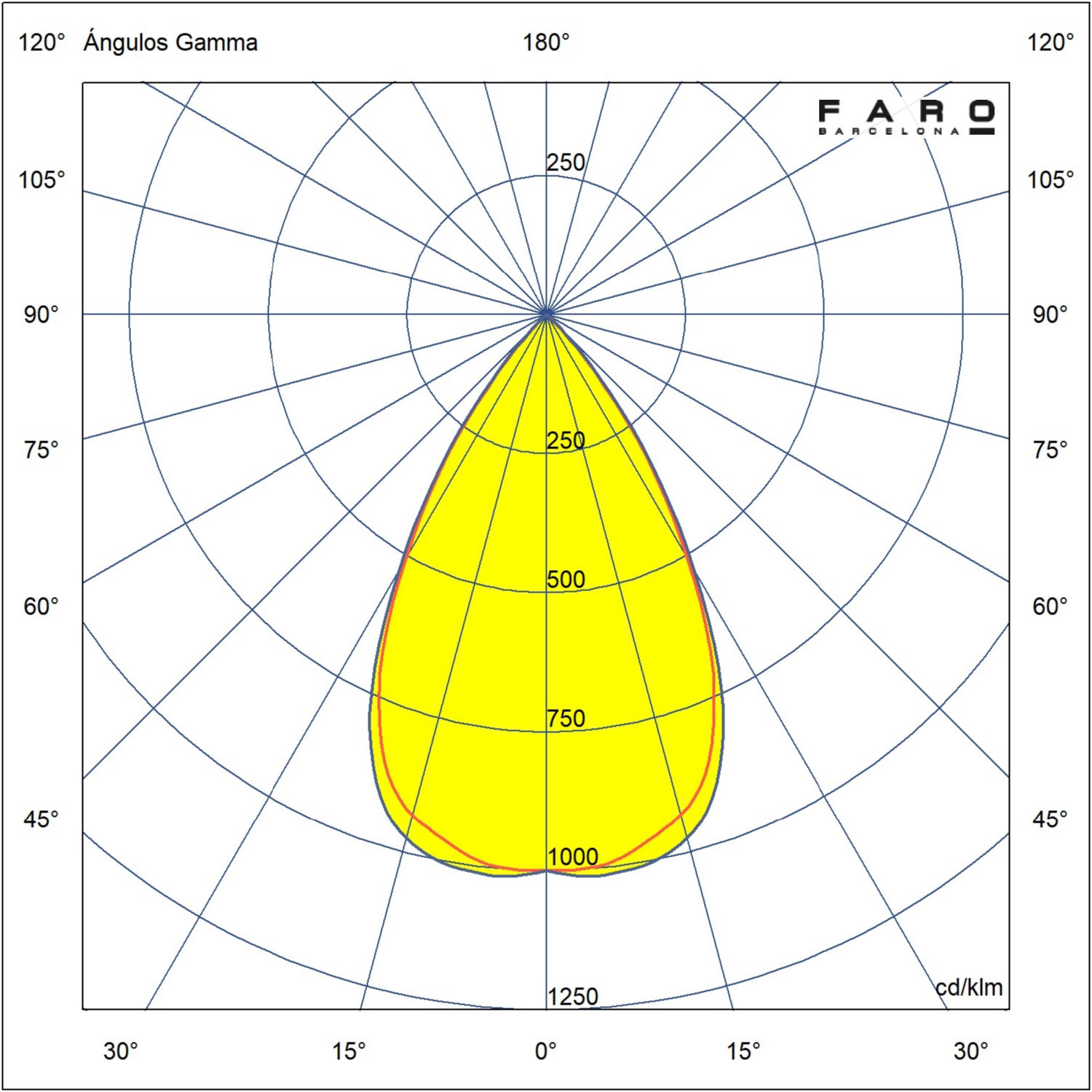

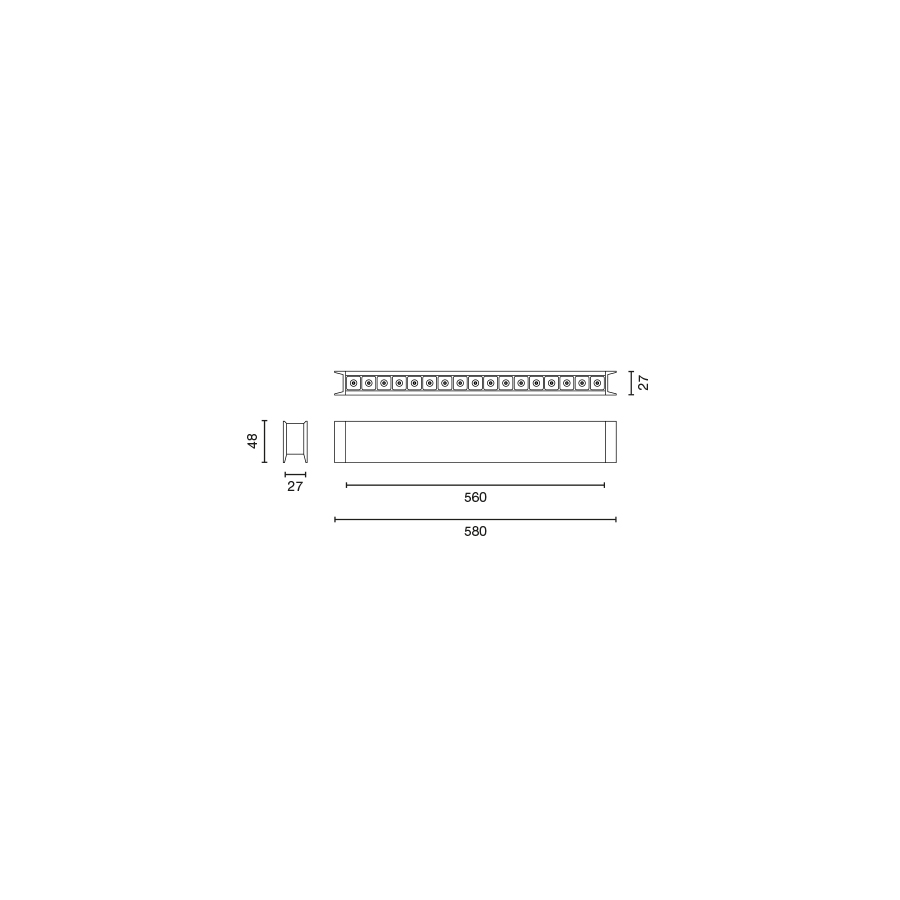

Technical drawing Photometric
