LINSE ZOOM TRACK 20W white 20-50º 2700K CRI90 CASAMBI

Related products

Ref: 0391292761W

Favourite

LED track projector 20W in white finish with adjustable zoom optics from 20° to 50° for precise beam control. LINSE Zoom Track provides 2700K color temperature and high CRI90, ideal for highlighting colors with fidelity. Compatible with CASAMBI control system for flexible and connected lighting.

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Three-phase track

Type: II

IP: 20

voltage: 220V-240V

Hertz: 50/60Hz

Max. Power: 20W

Control system: CASAMBI

Material

Body/Structure: Aluminium + Aluminium

Diffuser: PC

Finish

Body/Structure: Black+Black

Diffuser: Transparent

Lighting characteristics

Light source included: Yes

Light source: COB LED

Dimmable: Yes

Temperature: 2700K

Lumens: 605lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L90 B10

Degrees of light aperture: 20-50º

Light direction: Direct

Energy classification: F

Tilt angle: 90

Rotation angle 1: 355

Driver

Driver included: Yes

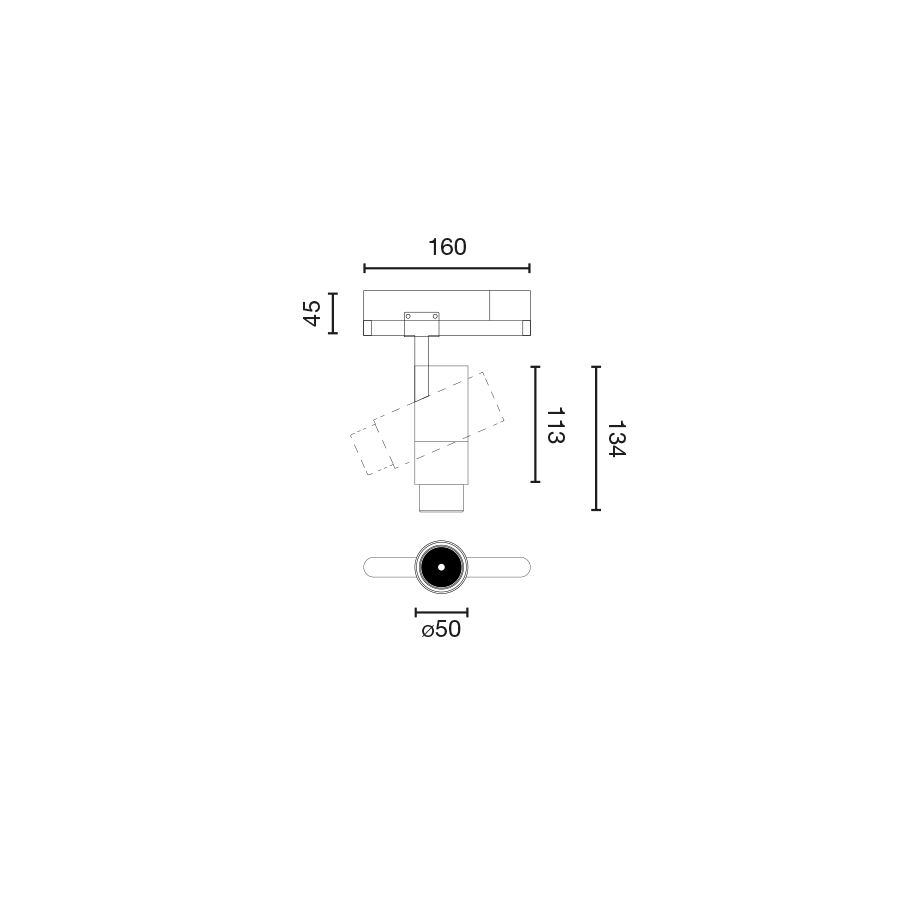

Dimensions and photometrics

Download files

Instructions

Technical data sheet

Instructions

Images

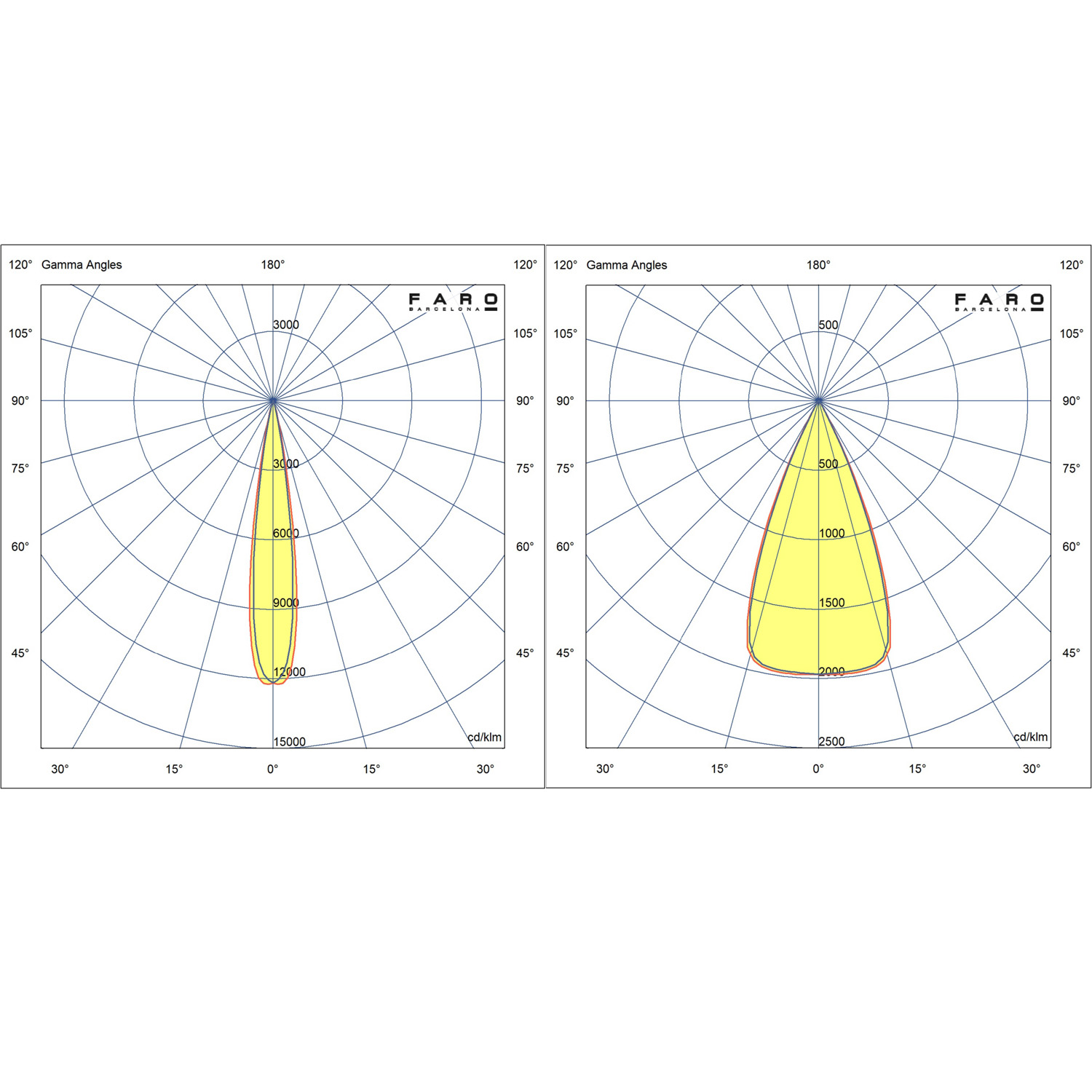

Photometric
