Klim is a ceiling fan surface in blade finish pine, with size M. Equipped with a motor DC, it offers 5 adjustable speeds and is suitable for sloped ceilings. Includes white wall control for a comfortable and functional 5‑speed operation.
Related products
Catalog
Wall controller white
Wired white rotary wall controller with 5 speeds. Direct control for fans without RF. Quick and reliable installation. Ask about the receiver compatible with your fan. For more information.
FSC wood certification
Its blades are made of FSC wood, which guarantees that it comes from responsibly managed forests.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “M” size fan is ideal for rooms between 13 and 17.6 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Recommended bulbs
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
15W
Fan Power (W):
5-7-11-17-24
Airflow (m3/min):
58-91-111-130-148
Airflow (CFM):
2051-3225-3915-4610-5219
RPM:
90-119-144-170-192
Reverse function:
No
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
Yes
Maximum tilt (º):
20
Downrod diameter:
26
FSC/PEFC Wood with certificate:
Si
Light kit model:
Estándar
Material
Body/Structure:
Steel
Diffuser:
Glass
Blade material:
Pine Wood
Finish
Body/Structure:
Matt Black
Diffuser:
Opal
Blade finish:
Pine
Lighting characteristics
Light source:
E27 LED A60
Light direction:
Direct
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm

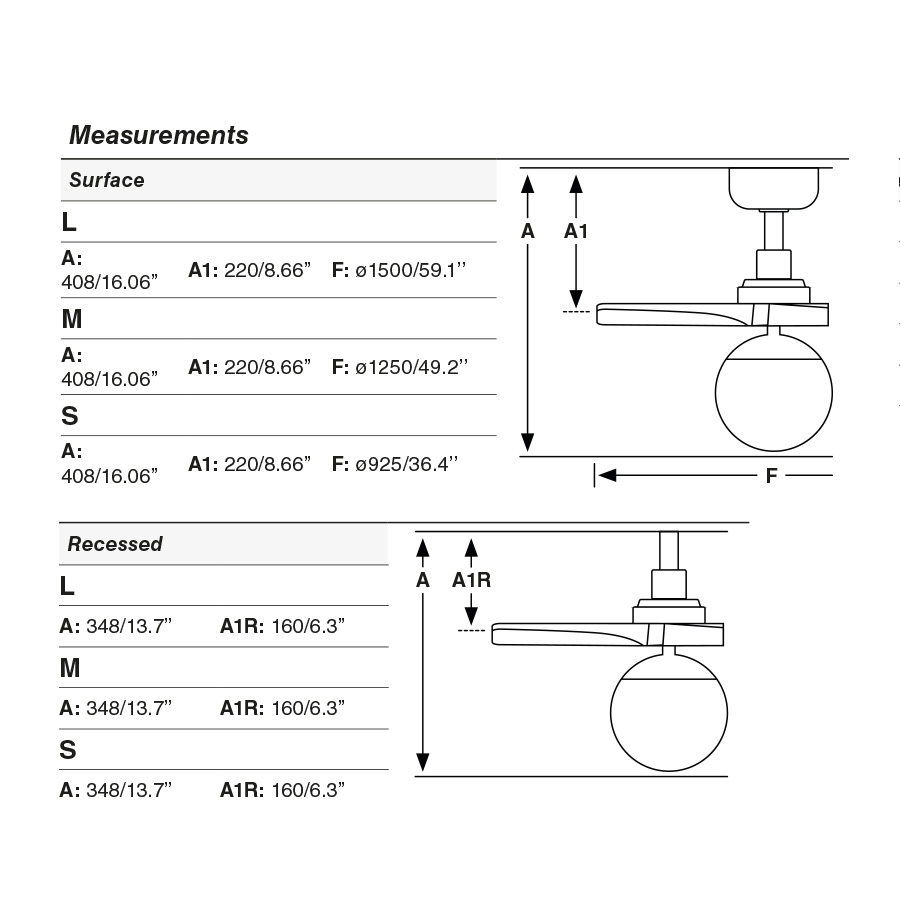

Measures
See 3D projection
