KIRA PINHOLE White ORIENTABLE IP65 10W 24º 4000K

Related products

Ref: 03756194021

Favourite

KIRA is a white orientable recessed pinhole downlight 10W in white finish with IP65 protection. KIRA offers 24° optics for precise and focused lighting with 4000K color temperature. Compatible with ON/OFF.

scroll to see more

Technical features

View technical sheet Download technical sheet

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: II

IP: 65

voltage: 220V-240V

Hertz: 50/60Hz

Max. Power: 10W

Cutting size: 60mm

Control system: On/off

Minimum recessed height: 100mm

UGR: 19

Material

Body/Structure: Aluminium

Diffuser: PMMA

Finish

Body/Structure: White

Lighting characteristics

Light source: LED MODULE

Maximum ceiling thickness: 22mm

Temperature: 4000K

Lumens: 787lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L70 B10

Degrees of light aperture: 24º

Light direction: Direct

Energy classification: E

Tilt angle: 30

Driver

Driver included: Yes

Power factor: 0.95

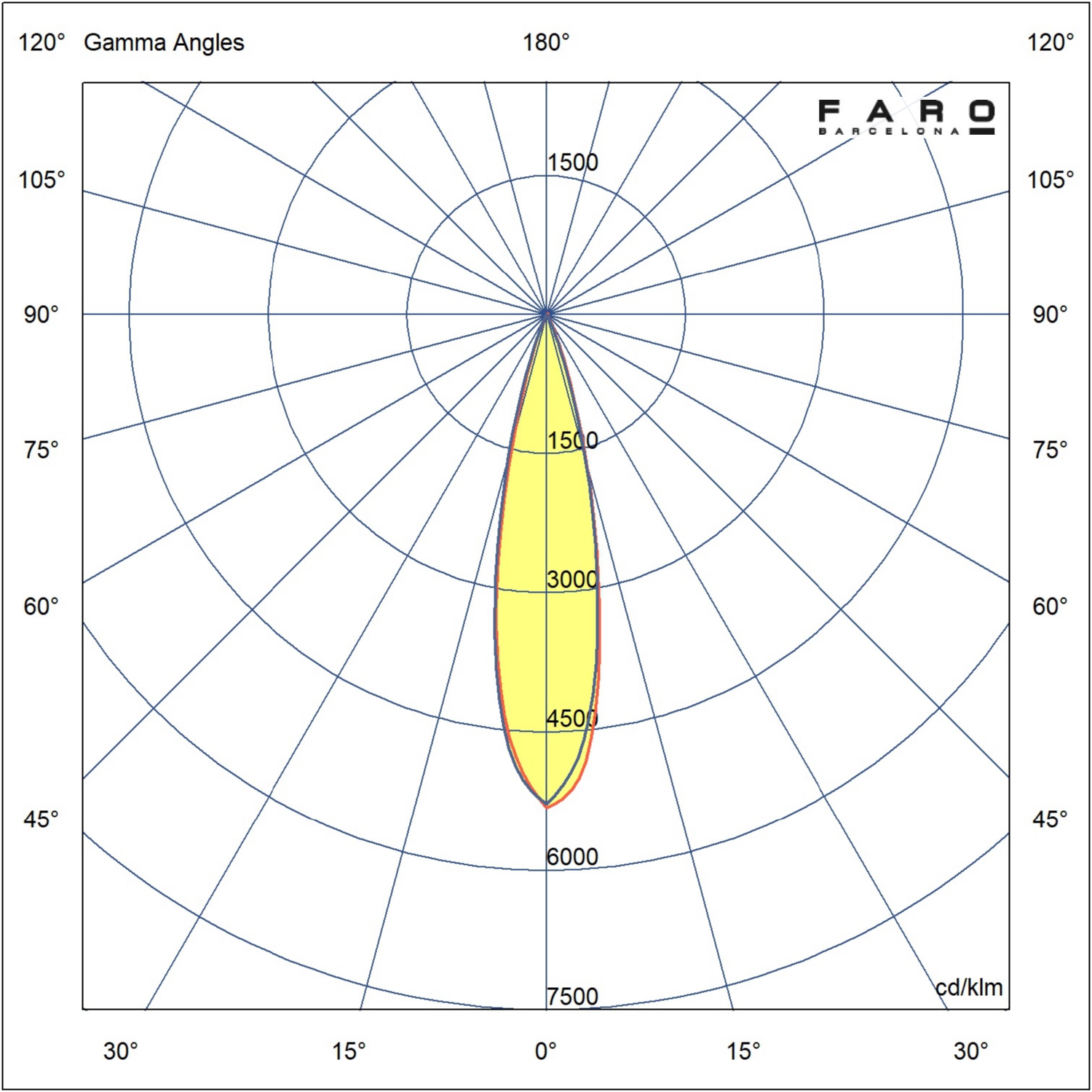

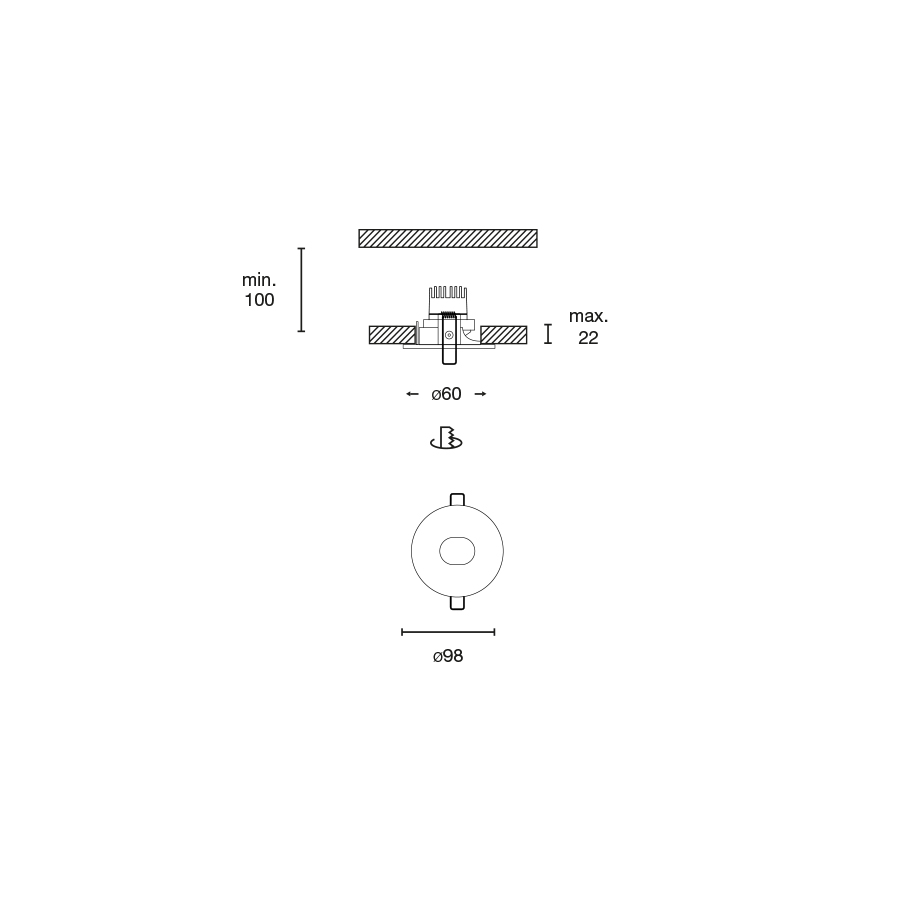

Dimensions and photometrics

Download files

Instructions

Technical data sheet

Images

Photometric
