KIMO White recessed lamp 30W 36º 3000K CRI90 TRIAC
Ref: 0360293031C
Favourite
KIMO is a downlight designed for both accent and general lighting. It is ideal for illuminating spaces with high ceilings, such as dealerships or entrance halls, providing efficient and powerful lighting to enhance large areas. KIMO combines functionality and versatility, being the perfect choice for spaces that require outstanding performance.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: II
IP: 20
voltage: 220V-240V
Power supply current: 700 mA
Hertz: 50/60Hz

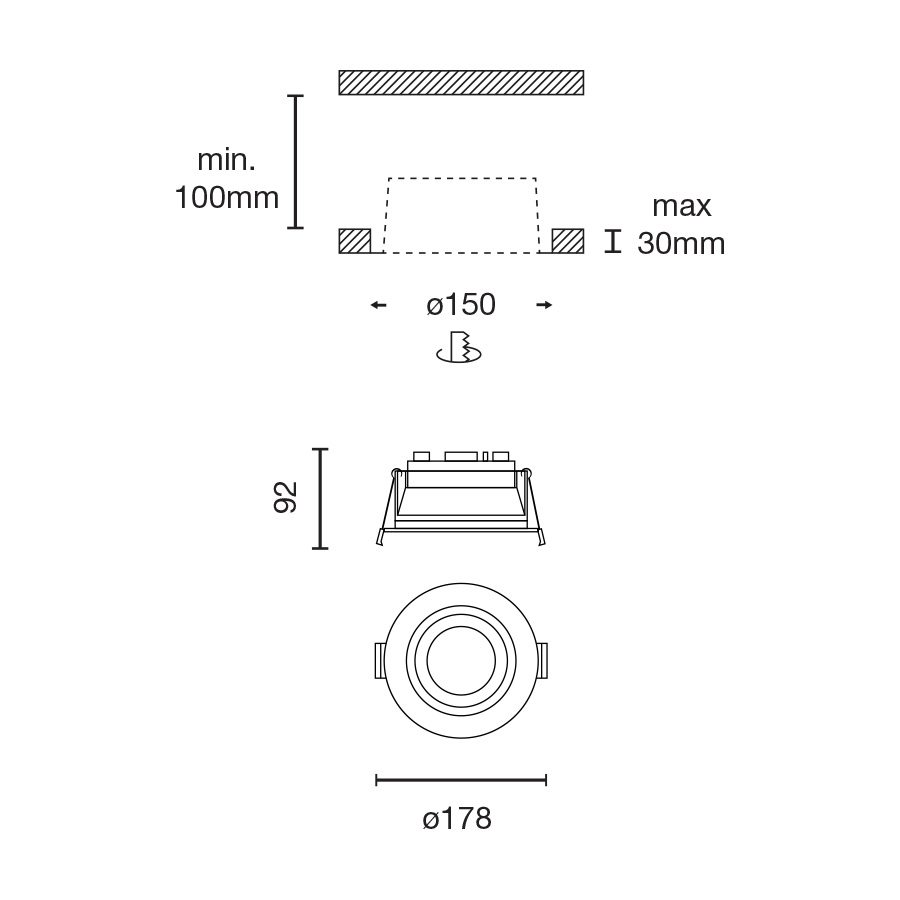

Flush box dimensions : 198x198x100
Max. Power: 30W
Cutting size: ø 150mm
Control system: TRIAC
Minimum recessed height: 100mm
Lighting characteristics
Light source included: Yes
Light source: COB LED
Dimmable: Yes
Maximum ceiling thickness: 30mm
Temperature: 3000K
Lumens: 2473lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L70 B10

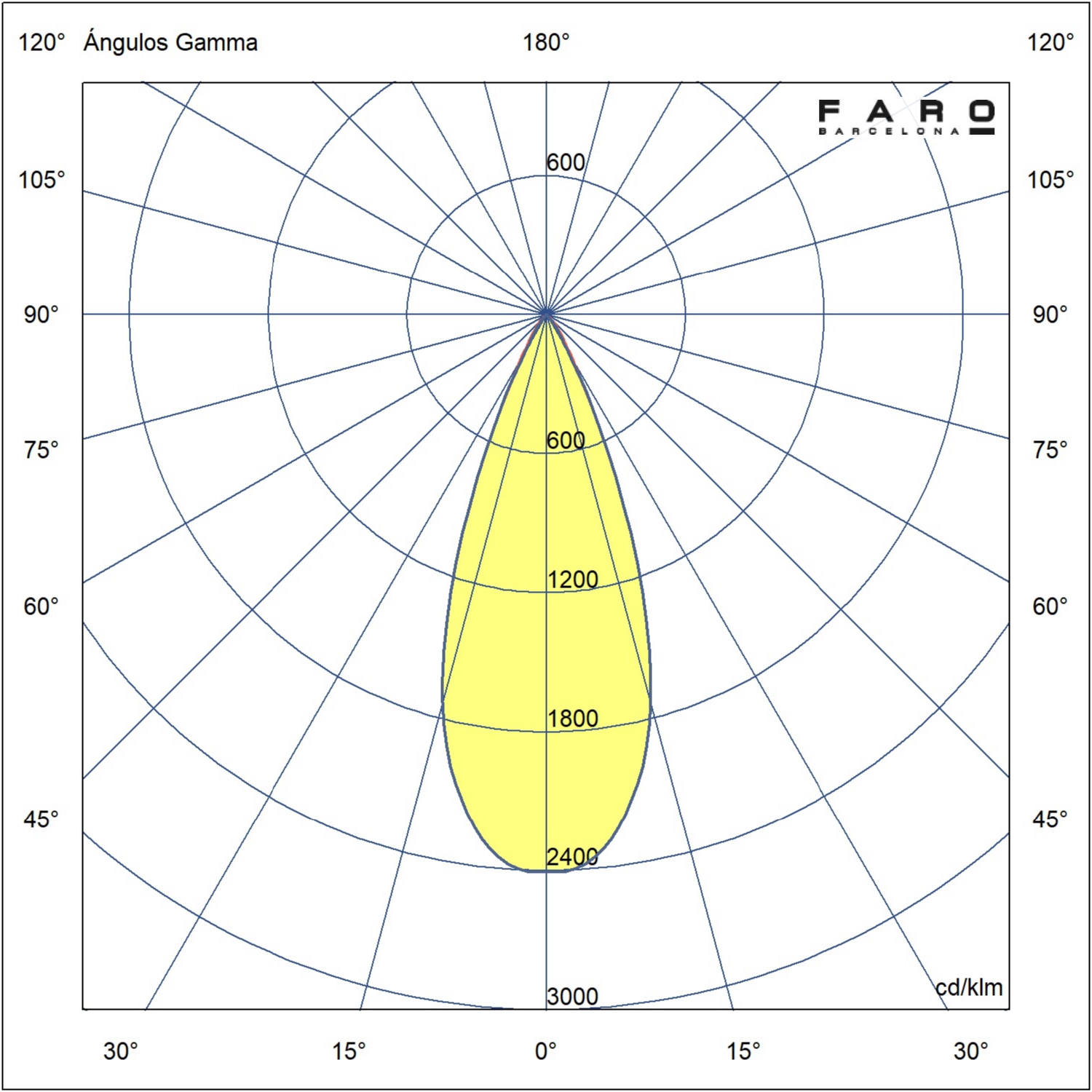

Degrees of light aperture: 36º
Energy classification: E
Eficiencia: 66
Type of lighting: ACENTO
Incandescent filament: 650
Driver
Driver included: Yes
Dimensions and photometrics
