Home CEILING FANS WITH LIGHT Ceiling KHIOS XL LED Dark fan
KHIOS XL LED Dark fan
Ref: 34250A
Favourite
Discontinued
Ceiling fan with light extra large from 28 to 39 m². Operated by remote control (included) setted up with 6 dimmable speeds. KHIOS has winter / summer function.
scroll to see more
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
It has a programmable remote control which will allow you to control your fan in a more comfortable and simpler way.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “XL” size fan is ideal for rooms from 28 to 39 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Colour temperature
This fan has a colour temperature of 3000K, which will provide you with a warm light.
Technical features
View technical sheet Download technical sheet Instructions
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: I
IP: 20
voltage: 220V-240V
Hertz: 50/60Hz
Max. Power: 32W
Fan Power (W): 16-47-70-93-116-140
RPM: 38-56-64-70-74-77
Reverse function: Yes
Engine type: DC
No. of blades: 6
Reversible blades: No
Pitched ceiling: No
Material
Body/Structure: Steel
Diffuser: PC
Blade material: Aluminium
Finish
Body/Structure: Matt Black
Diffuser: Opal
Blade finish: Matt Black
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Temperature: 3000K
Lumens: 2200lm
CRI: >80
Additional information
Length of the included rods : 508
Optional downrod model: No disponible

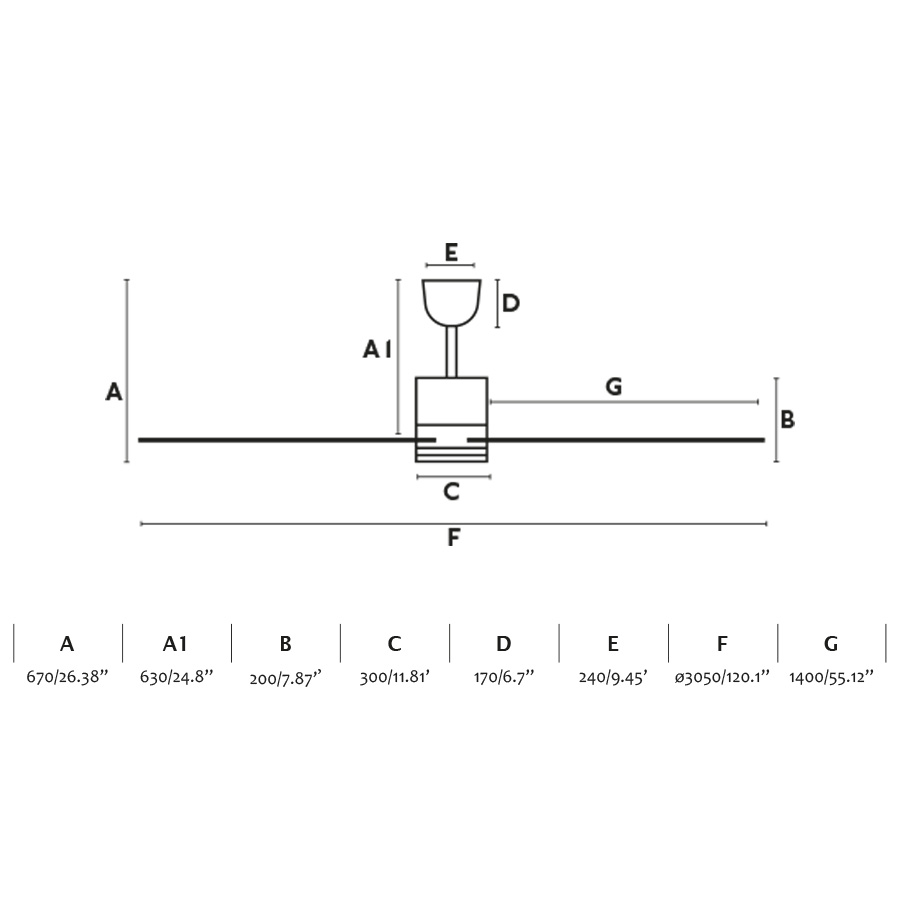

Dimensions and photometrics
See 3D projection
Load interactive experience
Download files
Download files
Instructions
Technical data sheet
Instructions
Images

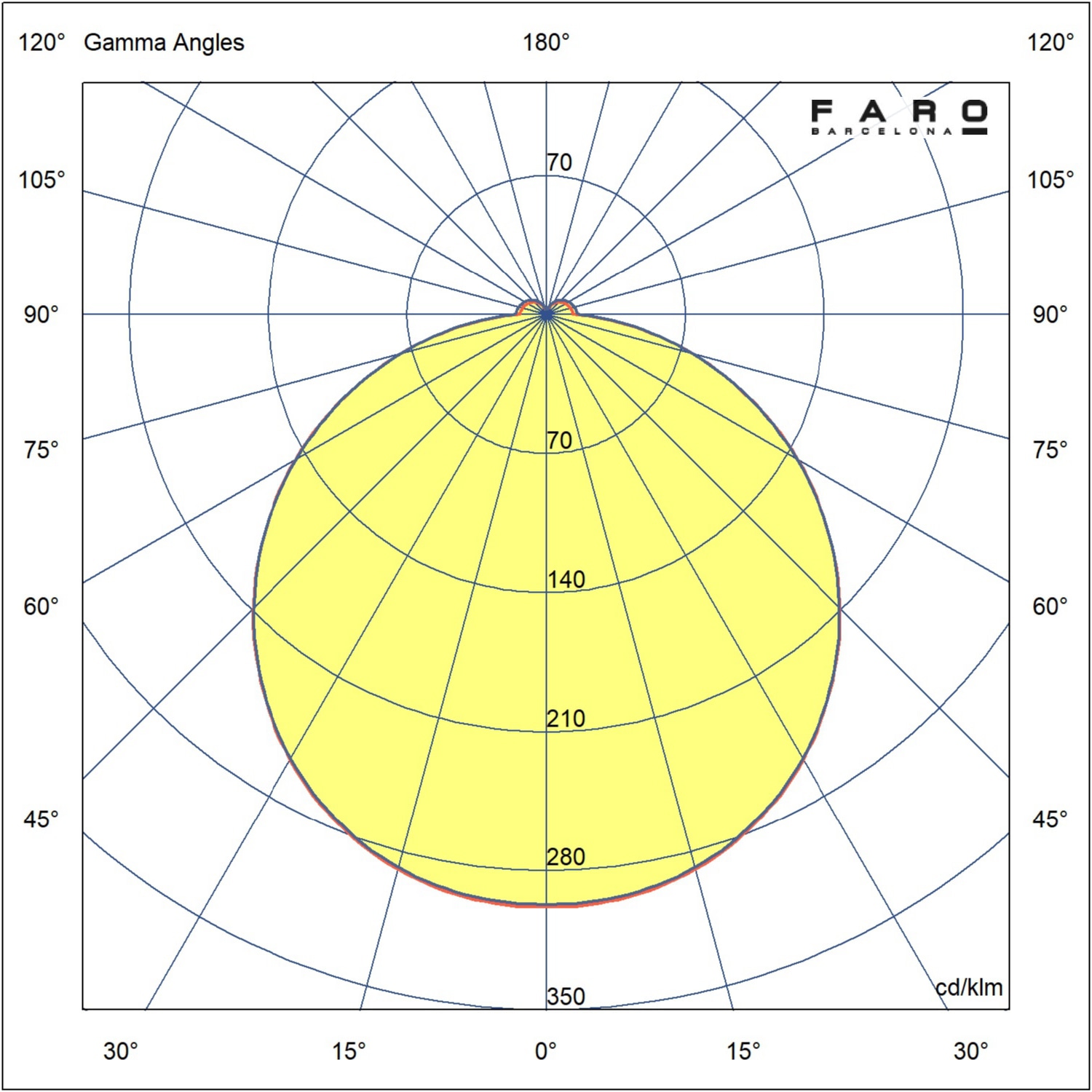

Photometric
