Heywood is a ceiling fan surface in blade finish walnut, with size L. Equipped with a motor DC, it offers 6 adjustable speeds, features a reverse function and is suitable for sloped ceilings. Operates for integrations with active home‑automation systems and via rotary regulators 0‑10/1‑10V passive.
Related products

Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
Control your fan with 0-10V / 1-10V active or passive, compatible with integration systems and mechanisms, discover more here https://faro.es/es/blog/fan-integration/
FSC wood certification
Its blades are made of FSC wood, which guarantees that it comes from responsibly managed forests.

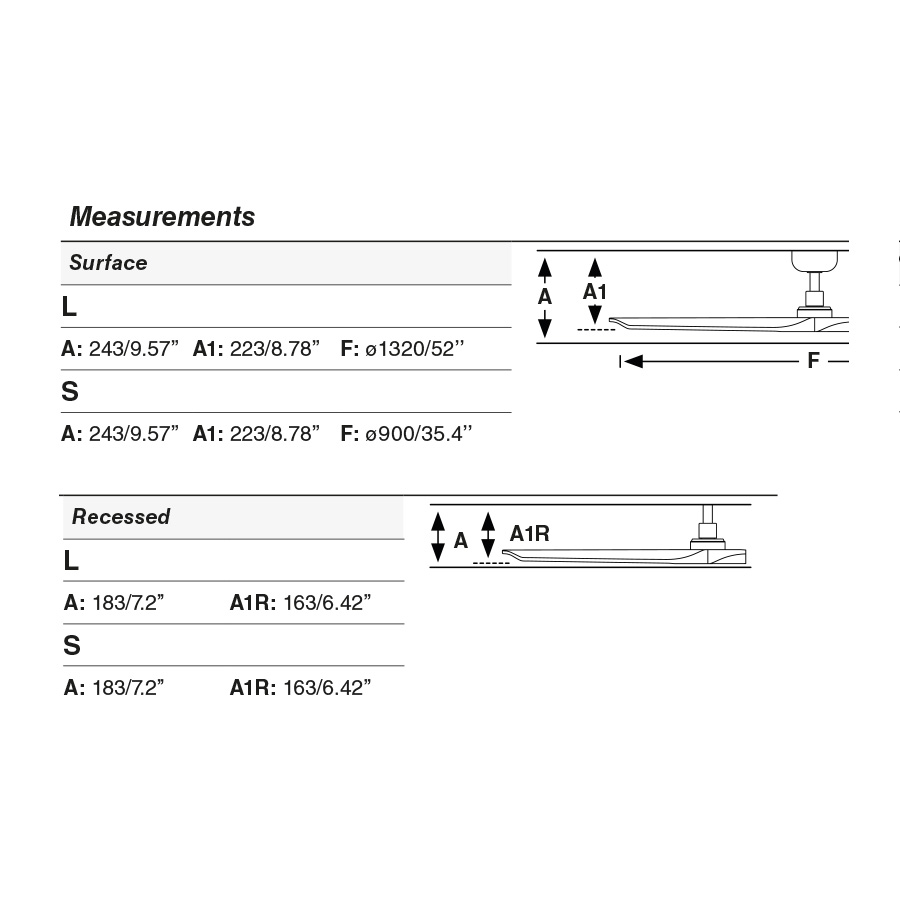

Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “L” size fan is ideal for rooms between 17.6 and 28 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Fan Power (W):
4-5-7-13-22-32
Airflow (m3/min):
55-71-96-119-151-174
Airflow (CFM):
1983-2557-3447-4269-5397-6234
RPM:
58-75-94-124-152-173
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
Yes
Maximum tilt (º):
12
Downrod diameter:
26
FSC/PEFC Wood with certificate:
Si
Material
Body/Structure:
Steel
Blade material:
Pine Wood
Finish
Body/Structure:
Matt Black
Blade finish:
Dark Walnut
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm
