ELIOS TUBE White module IP20 7W 24º 2700K CASAMBI

Related products

Ref: 07022792721W

Favourite

ELIOS is a versatile and adaptable collection of technical downlights. It incorporates advanced LED technology that combines high energy efficiency, visual comfort and CRI90. The TUBE version is also adjustable 365 degrees horizontally and 25 degrees vertically. It is necessary to purchase a frame to install the product. See under "Accessories".

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

Accesories

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: II

IP: 20

voltage: 220V-240V

Power supply current: 150 mA

Hertz: 50/60Hz

Flush box dimensions : 275x275x92

Max. Power: 6,4W

Cutting size: ø 75mm

Control system: CASAMBI

Minimum recessed height: 92mm

Material

Body/Structure: Aluminium + Aluminium

Finish

Body/Structure: Black+Black

Lighting characteristics

Light source included: Yes

Light source: COB LED

Dimmable: Yes

Maximum ceiling thickness: 25mm

Temperature: 2700K

Lumens: 405lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L70 B10

Degrees of light aperture: 24º

Energy classification: F

Eficiencia: 91,41

Type of lighting: ACENTO

Incandescent filament: 650

Driver

Driver included: Yes

Power factor: 0.8

Accesories

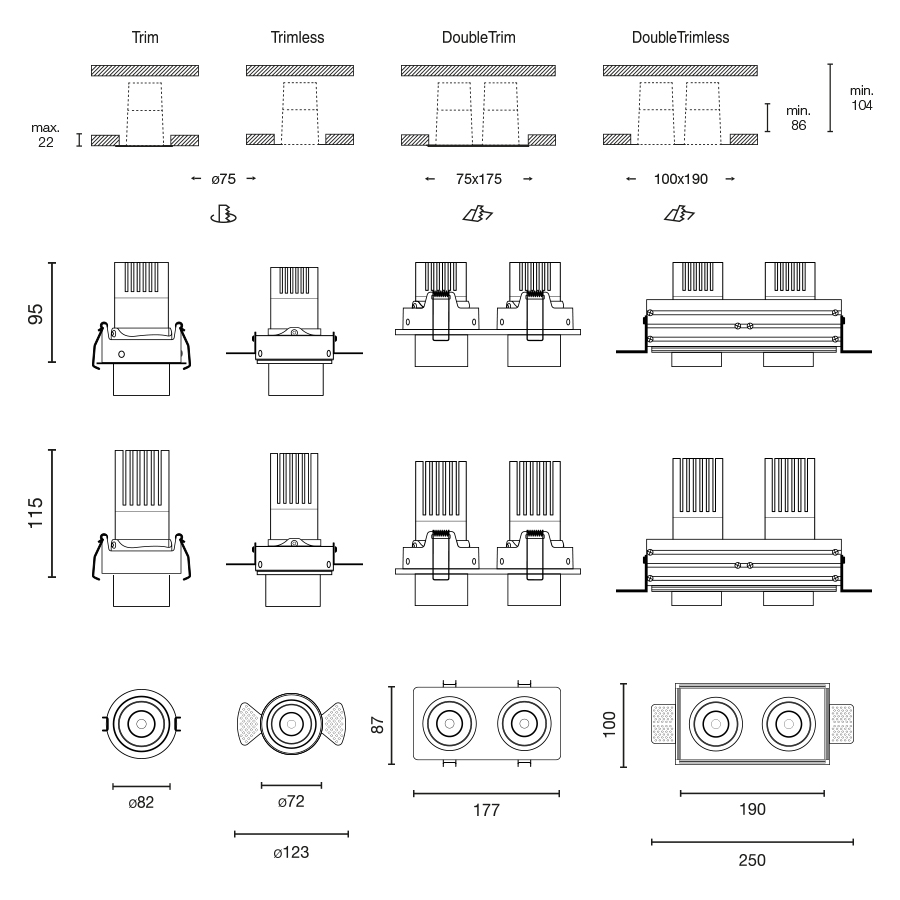

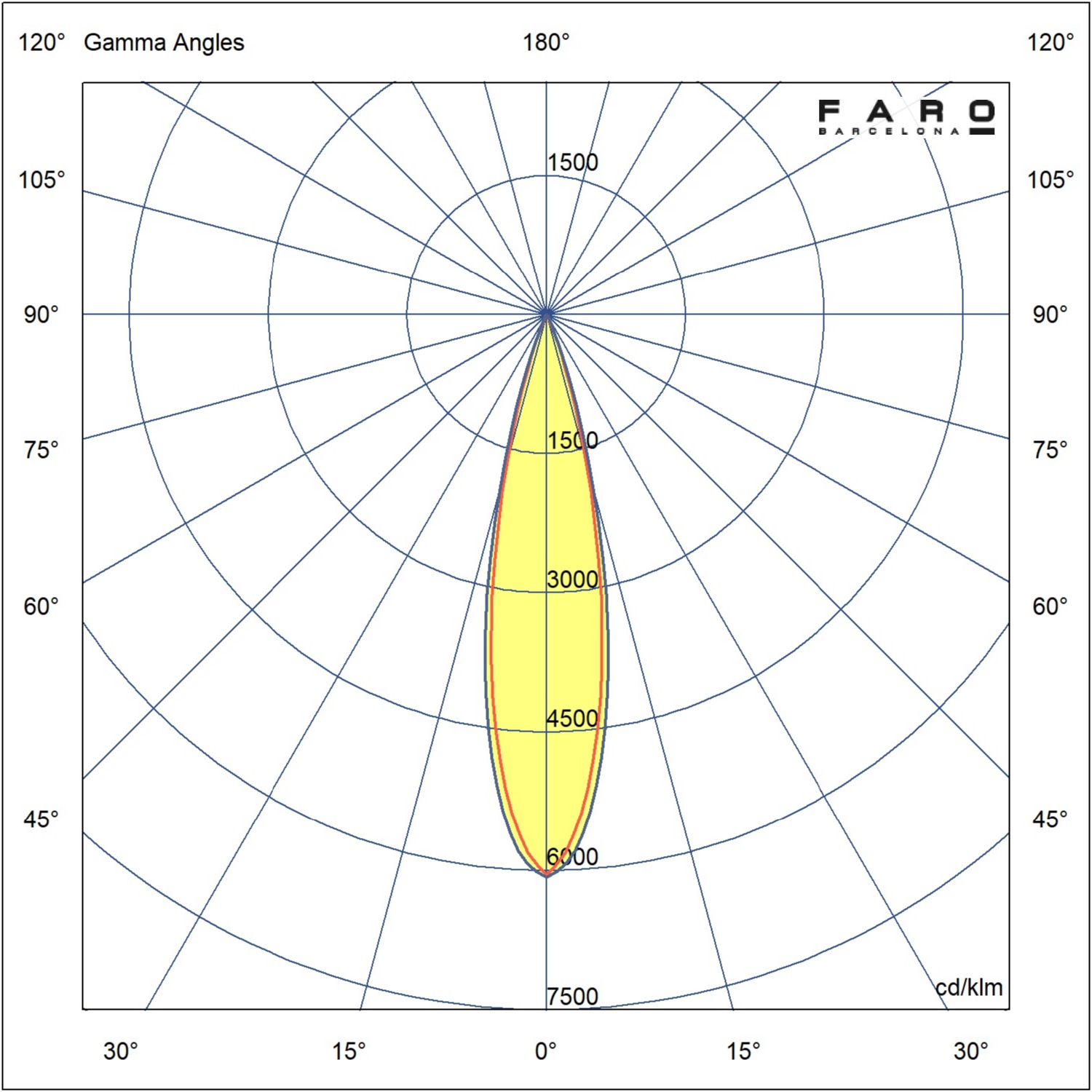

Dimensions and photometrics
