Home >  ARCHITECTURAL >  RECESSED LAMP >  Ceiling >  DEEP78 Downlight round without frame black 60° 2700K spread
DEEP78 Downlight round without frame black 60° 2700K spread
Ref: 3065092762D
Favourite
Round trimless black downlight. DEEP78 is a series of recessed luminaires designed for lighting retail and work spaces. 60º version. Spread diffuser widens the angle of light.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Recommended electrical equipment
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Ceiling
Type: III
IP: 23
voltage: 36V
Power supply current: 500 mA
Hertz: 50/60Hz
Flush box dimensions : 130x130x165
Max. Power: 18W
Cutting size: ø 105mm
Minimum recessed height: 150mm
Material
Body/Structure: Aluminium + Aluminium
Finish
Body/Structure: Black
Lighting characteristics
Light source included: Yes
Light source: COB LED
Dimmable: Yes
Maximum ceiling thickness: 30mm
Temperature: 2700K
Lumens: 1040lm
CRI: 90
Lumen maintenance / LED lifespan: 50.000h L90 B10
Degrees of light aperture: 60º
Type of lighting: AMBIENTAL
Incandescent filament: 650
Driver
Driver included: No
Power factor: 0.8
Recommended electrical equipment
DRIVER 3-38W 300-1050mA DC10-54V Casambi See more
Architectural
DRIVER 3-38W 300-1050mA DC10-54V Casambi
Reference: 98310538
0.38-36W 350mA 2.5-50VDC DALI IND driver See more
Architectural
0.38-36W 350mA 2.5-50VDC DALI IND driver
Reference: 98310136D
0.38-36W 500mA 2.5-50VDC DALI IND driver See more
Architectural
0.38-36W 500mA 2.5-50VDC DALI IND driver
Reference: 98310336D
0.38-36W 350mA 2.5-50VDC IND driver See more
Architectural
0.38-36W 350mA 2.5-50VDC IND driver
Reference: 98310136
Driver 10-14W 350mA DC 29-40V TRIAC C See more
Architectural
Driver 10-14W 350mA DC 29-40V TRIAC C
Reference: 98310114C
DRIVER 8-21W 500mA DC 16-42V TRIAC LC See more
Architectural
DRIVER 8-21W 500mA DC 16-42V TRIAC LC
Reference: 98310321LC
Dimensions and photometrics

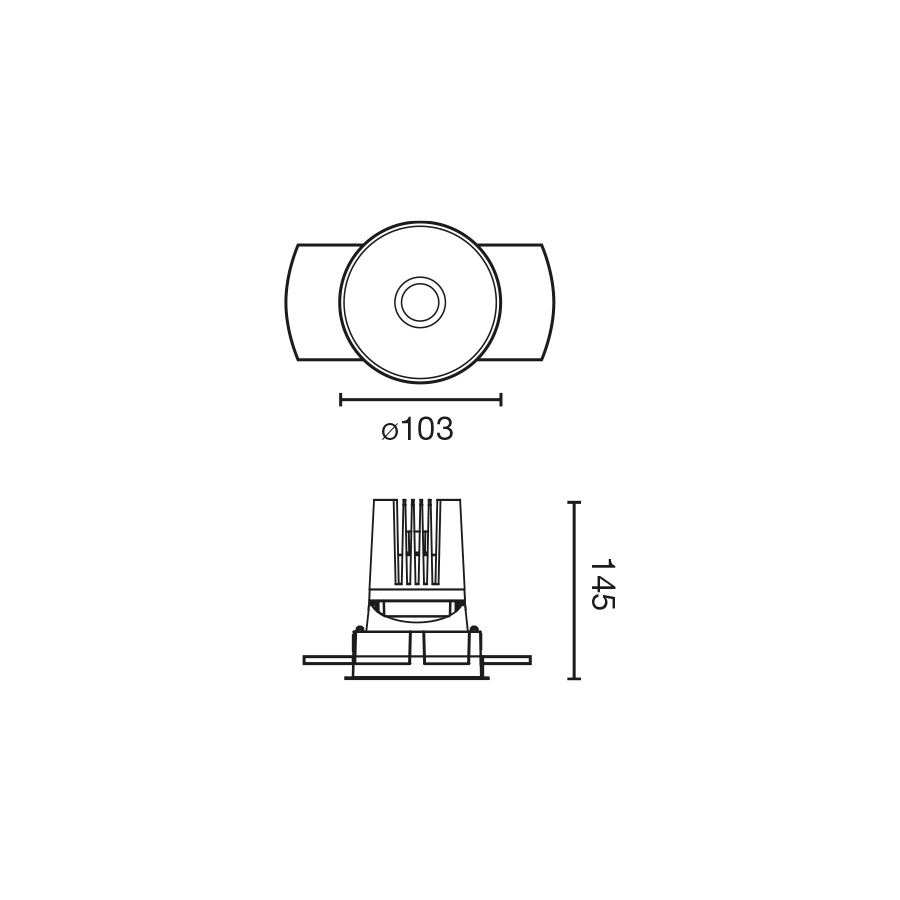

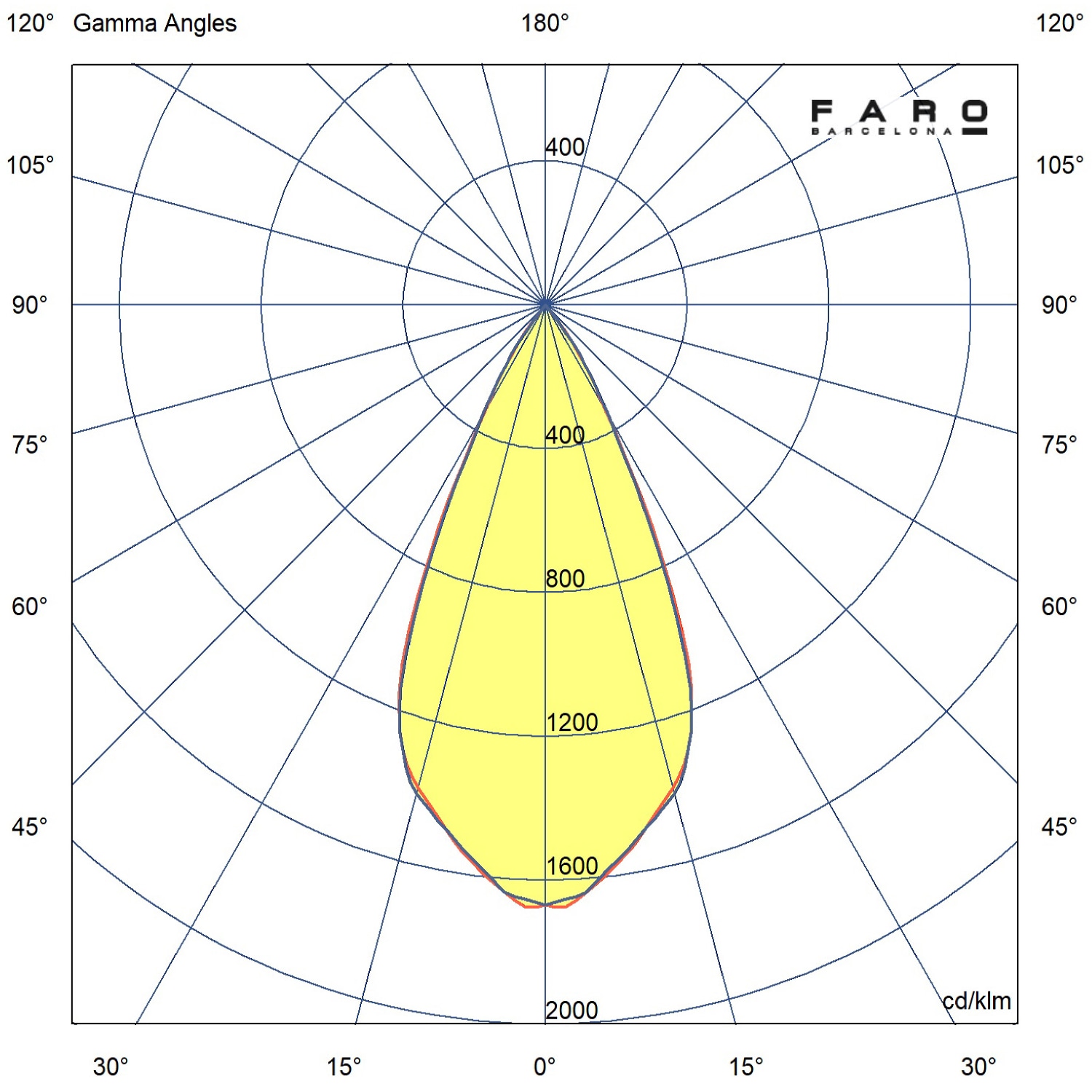

Technical drawing Photometric
