DEEP78 Downlight round black 15° 2700K honeycomb

Related products

Ref: 3055092712H

Favourite

Round black downlight. DEEP78 is a series of recessed luminaires designed for lighting retail and work spaces. The 15° version is ideal for spot lighting. The Honeycomb diffuser allows a light projection with less glare.

scroll to see more

Technical features

View technical sheet Download technical sheet Instructions

Specifications

Recommended electrical equipment

Specifications

General characteristics

Lighting characteristics

Driver

General characteristics

Fixation: Ceiling

Type: III

IP: 23

voltage: 36V

Power supply current: 500 mA

Hertz: 50/60Hz

Flush box dimensions : 130x130x165

Max. Power: 18W

Cutting size: ø 105mm

Minimum recessed height: 150mm

Material

Body/Structure: Aluminium + Aluminium

Finish

Body/Structure: Black

Lighting characteristics

Light source included: Yes

Light source: COB LED

Dimmable: Yes

Maximum ceiling thickness: 30mm

Temperature: 2700K

Lumens: 1217lm

CRI: 90

Lumen maintenance / LED lifespan: 50.000h L90 B10

Degrees of light aperture: 15º

Type of lighting: ACENTO

Incandescent filament: 650

Driver

Driver included: No

Power factor: 0.8

Recommended electrical equipment

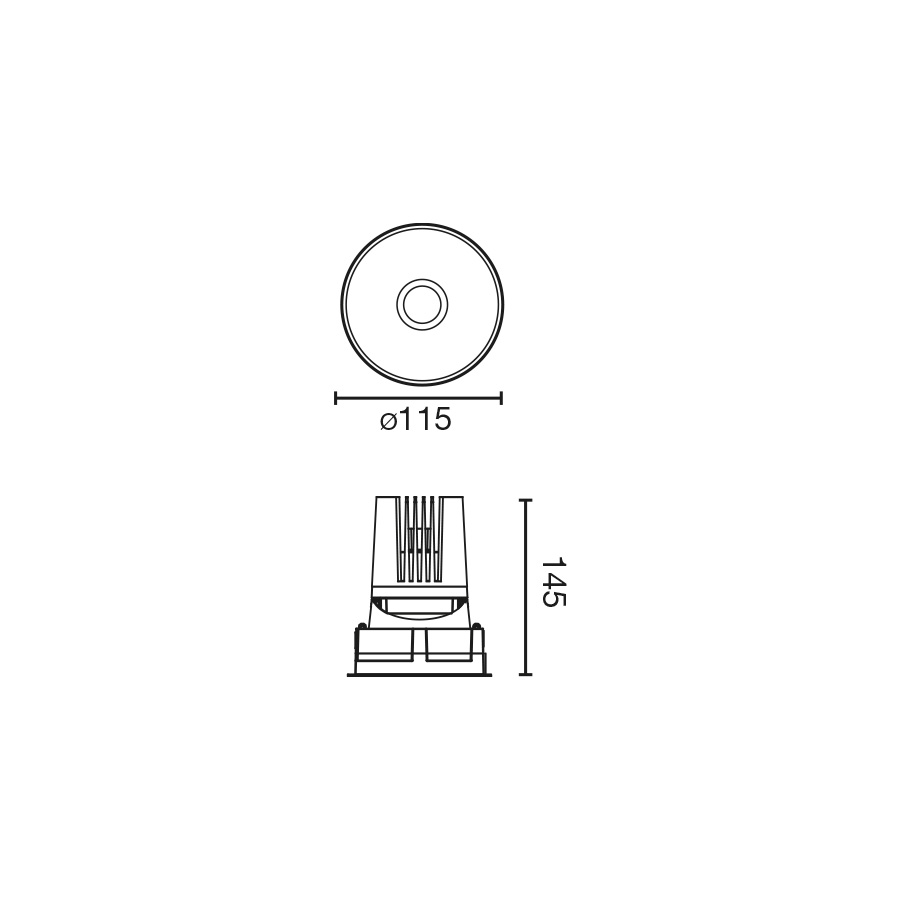

Dimensions and photometrics

See 3D projection

Load interactive experience

See now

Download files

Instructions

Technical data sheet

Instructions

Images

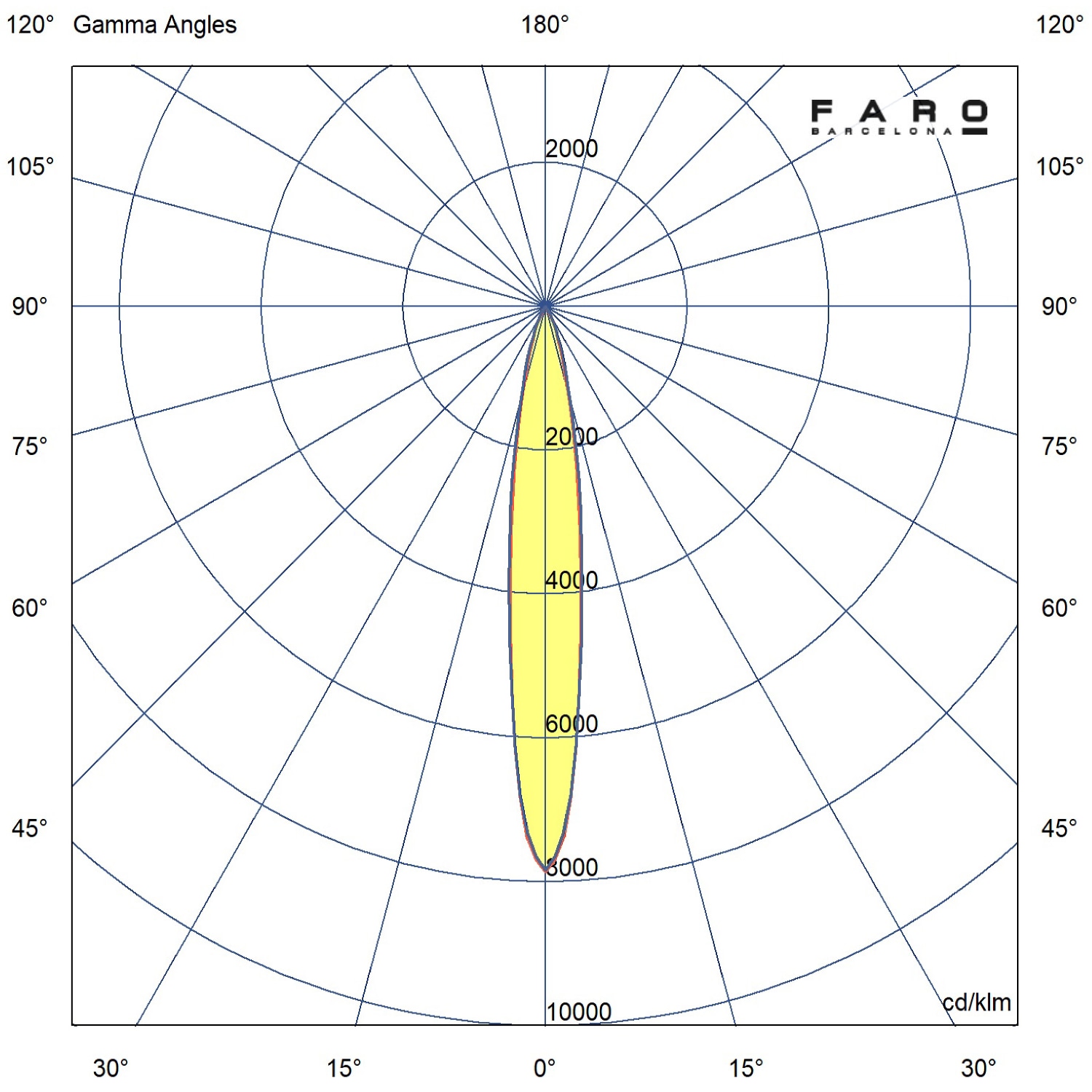

Photometric

Technical Files

2D / 3D
