Ref: 3023592732
Favourite
Round trimless black downlight. DEEP is a series of recessed luminaires designed for lighting retail and work spaces. 36º version.
Related products
Catalog
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Recommended electrical equipment
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
III
IP:
23
voltage:
36V
Power supply current:
350 mA
Hertz:
50/60Hz
Flush box dimensions :
120x120x145
Max. Power:
11W
Cutting size:
ø 85mm
Minimum recessed height:
150mm
Material
Body/Structure:
Aluminium + Aluminium
Finish
Body/Structure:
Black
Lighting characteristics
Light source included:
Yes
Light source:
COB LED
Dimmable:
Yes
Maximum ceiling thickness:
30mm
Temperature:
2700K
Lumens:
339lm
CRI:
90
Lumen maintenance / LED lifespan:
50.000h L90 B10
Degrees of light aperture:
36º
Type of lighting:
ACENTO
Incandescent filament:
650
Driver
Driver included:
No
Power factor:
0.8

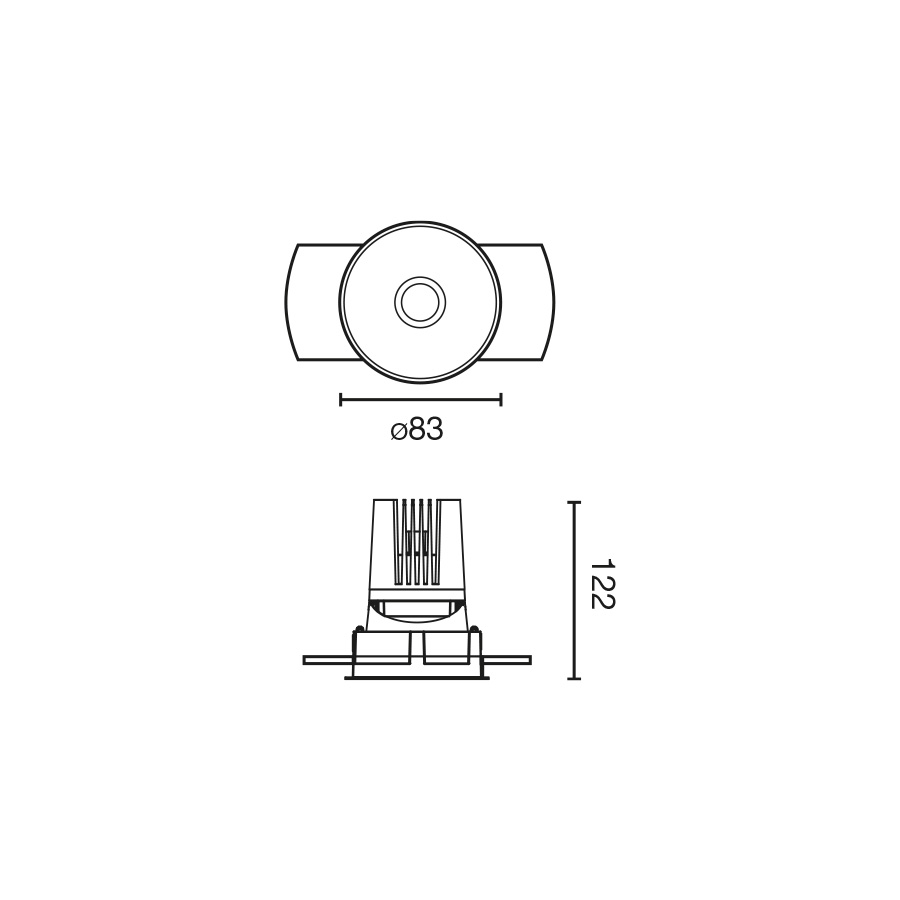

Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images

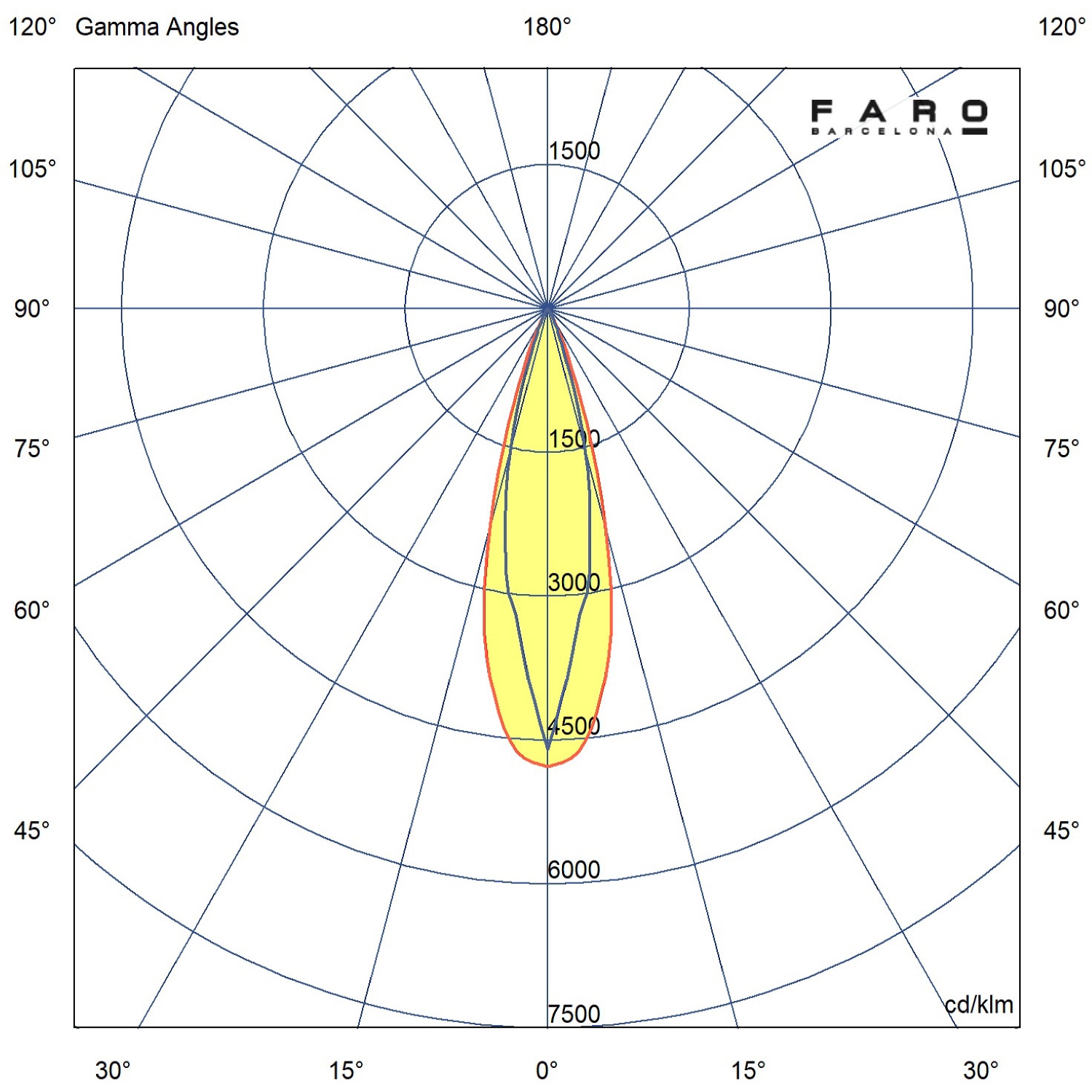

Photometric
