Home >  OUTDOOR >  RECESSED >  Wall >  DART RCT Black recessed lamp 3000K
DART RCT Black recessed lamp 3000K
Ref: 70278N
Favourite
DART RCT is an outdoor LED downlight manufactured in polycarbonate with a glass diffuser. This downlight is ideal for the outdoor lighting of signage. The box is required to install this downlight. It is also available in white.
scroll to see more
Technical features
View technical sheet Download technical sheet Instructions
Specifications
Accesories
Specifications
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation: Wall
Type: II
IP: 65
voltage: 220V-240V
Hertz: 50/60Hz
Flush box dimensions : 160x68
Max. Power: 3,1W
IK: 06
Cutting size: 160x68mm
Material
Body/Structure: PC
Diffuser: Glass
Finish
Body/Structure: Matt Black
Diffuser: Transparent
Lighting characteristics
Light source included: Yes
Light source: SMD LED
Maximum ceiling thickness: 42mm
Temperature: 3000K
Lumens: 207lm
CRI: >80
Degrees of light aperture: 100º
Energy classification: D
Driver
Driver included: Yes
Accesories
DART RCT Recessed box See more
Iluminación
DART RCT Recessed box
Reference: 70281
DART RCT Surface black box See more
Iluminación
DART RCT Surface black box
Reference: 70280
Dimensions and photometrics

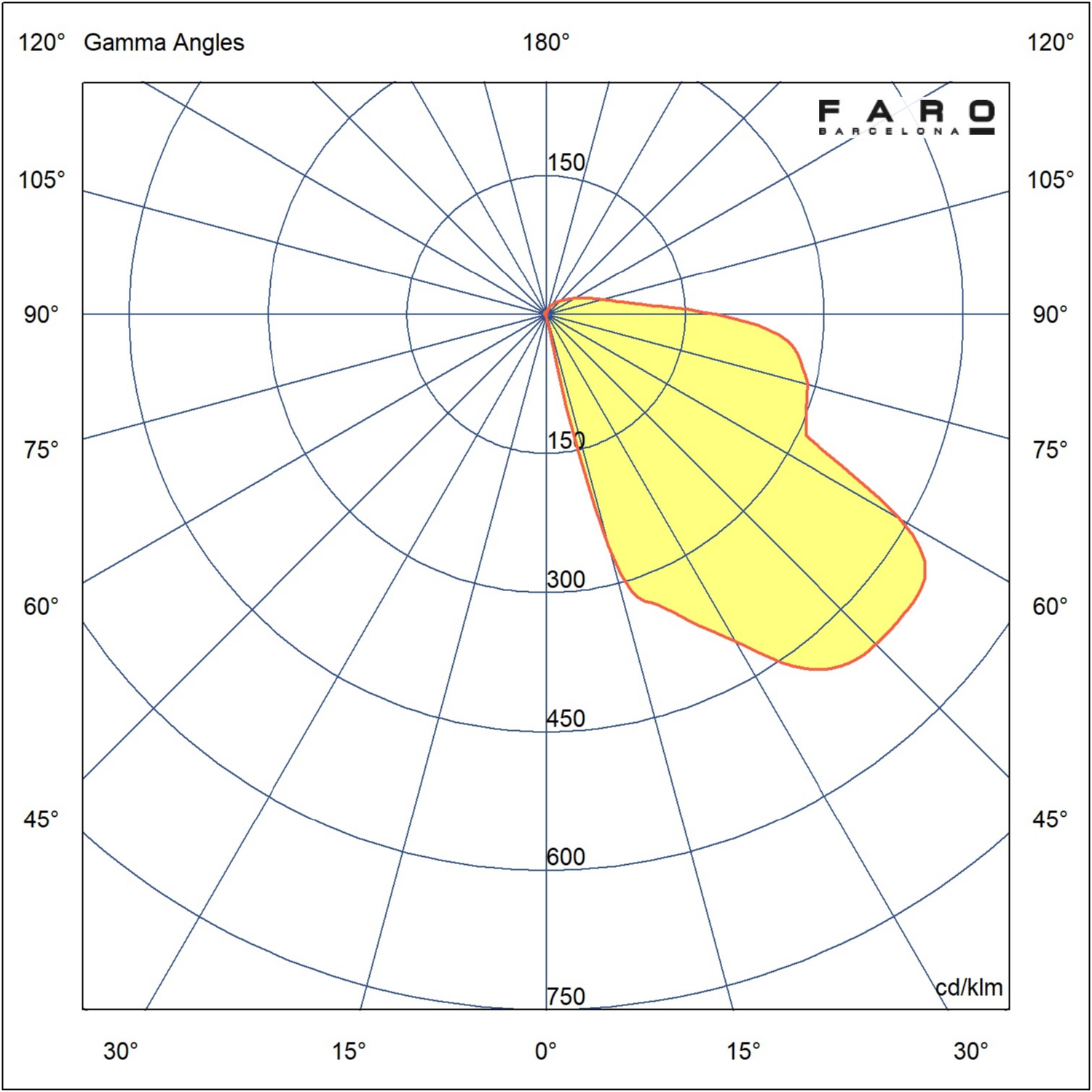

Technical drawing Photometric
