Cruiser is a ceiling fan surface in blade finish aluminum, with size S. Equipped with a motor DC, it offers 6 adjustable speeds, features a reverse function and is suitable for sloped ceilings. Compatibility with TUYA systems allows its integration via home‑automation and remote‑control solutions.
Related products
Catalog
Reverse function
Thanks to the reverse function, you can change the direction of the fan blades and use it both in summer and in winter. In summer, it will help achieve a cool atmosphere and in winter it will improve the efficiency of the heating system by making the hot air that accumulates in the ceiling circulate.
How to activate the fan
Control your fan with the TUYA application. This intelligent control has the same functionalities as a remote control. It operates with 2.4 GHz WIFI. It is compatible with Alexa and Google Assistant. Discover its advantages here.
Diameter
It is very important to choose the right fan size by taking into account the size of the room. This “S” size fan is ideal for rooms smaller than 13 m².
Motor DC
The direct current motor or DC motor is characterised by having up to 70% lower consumption than conventional fans, comparable to that of an LED light bulb. They are super silent fans when operating. It is also characterised by how quick it is when starting, accelerating, deaccelerating and stopping, and has a precise speed control. The motors are lighter, which facilitates their installation. They dissipate heat better, lengthening their useful life compared to conventional fans.
Installation for sloping ceilings
Suitable for sloping ceilings, which enables the shank to fall vertically so that the fan is always flat with respect to the ceiling and ensures the best operation and comfort.
Colour temperature
This fan has a colour temperature of 2700K, which will provide you with a warm light.
Technical features
View technical sheet
Download technical sheet
Instructions
Specifications
Accesories
General characteristics
Lighting characteristics
Driver
General characteristics
Fixation:
Ceiling
Type:
I
IP:
20
voltage:
220V-240V
Hertz:
50/60Hz
Max. Power:
20W
Fan Power (W):
3-5-9-14-21-29
Airflow (m3/min):
45-67-89-101-120-136
Airflow (CFM):
1602-2394-3159-3560-4235-4810
RPM:
95-148-188-221-260-292
Reverse function:
Yes
Engine type:
DC
No. of blades:
3
Reversible blades:
No
Pitched ceiling:
Yes
Maximum tilt (º):
20
Cutting size:
150mm
Downrod diameter:
26
Minimum recessed height:
160mm
Fan memory:
Yes
Light kit memory:
Yes
Confirmation sound on/off:
Yes
Remote control lock on/off:
Yes
UGR:
19
Light kit model:
Tak
Material
Body/Structure:
Aluminium
Diffuser:
PC
Blade material:
Aluminium
Finish
Body/Structure:
Matt Black
Diffuser:
Prism
Blade finish:
Aluminium
Lighting characteristics
Light source:
SMD LED
Maximum ceiling thickness:
26mm
Temperature:
2700K
Lumens:
1853lm
CRI:
90
Degrees of light aperture:
80º
Light direction:
Direct
Energy classification:
D
Additional information
Length of the included rods :
100
Optional downrod model:
Universal 26mm

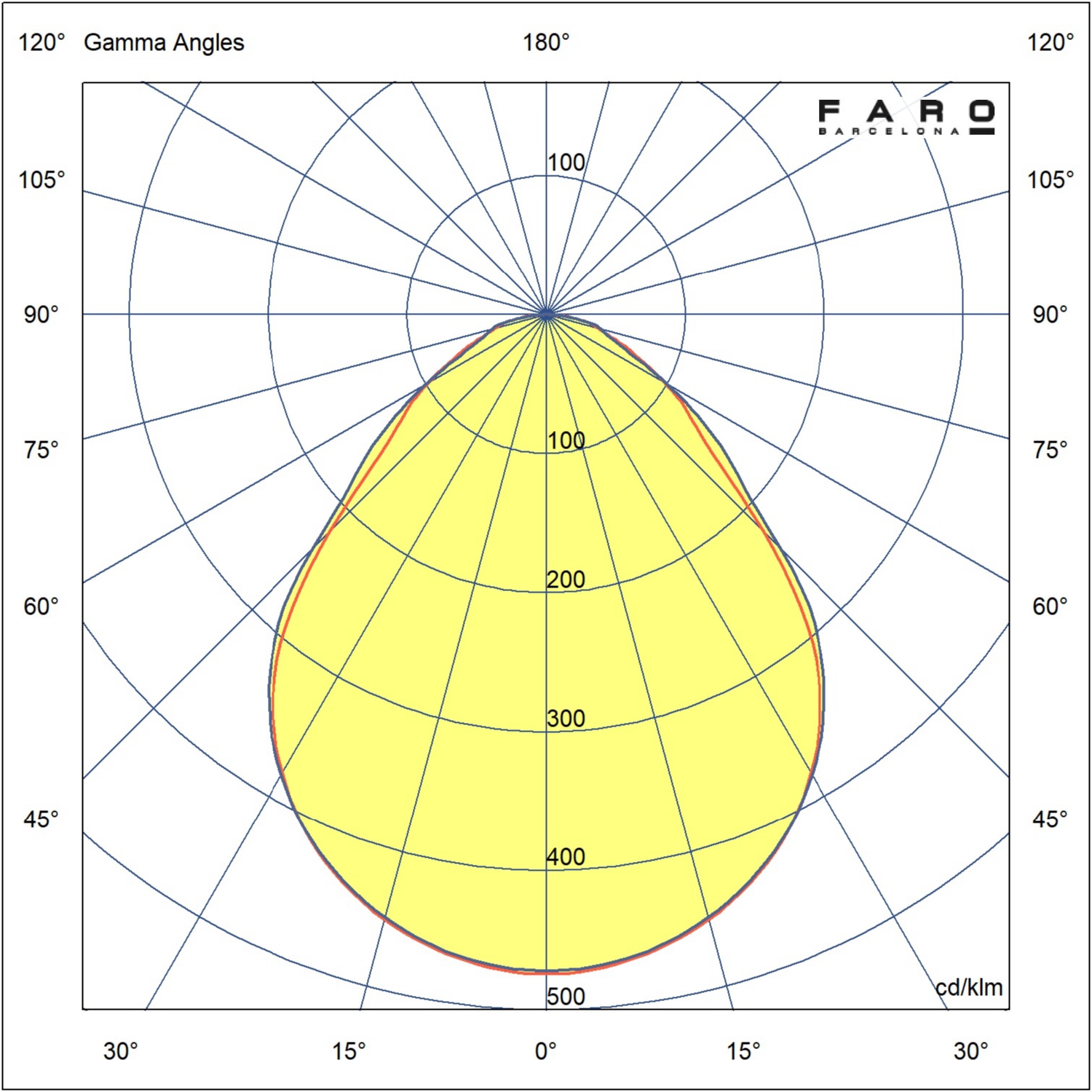

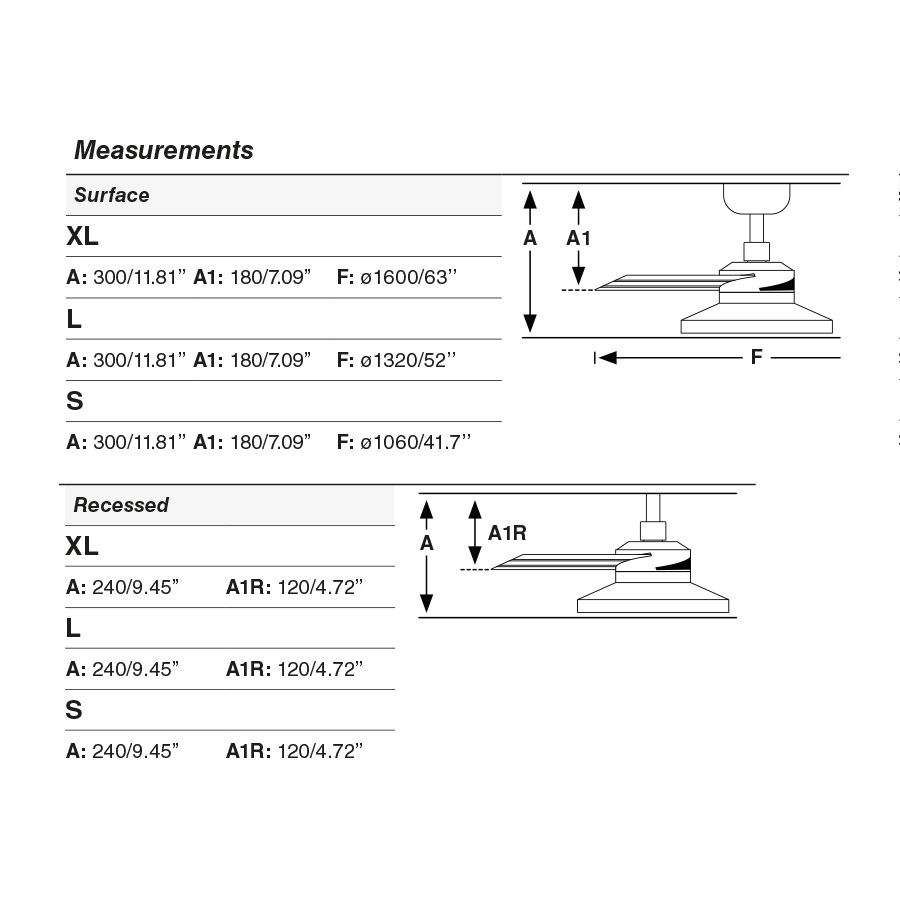

Dimensions and photometrics
Download files
Download files
Technical data sheet
Instructions
Images
Photometric
2D / 3D
BIM
Energy label
